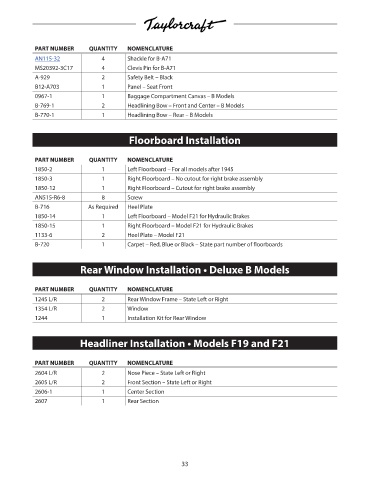

Page 37 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
AN115-32 4 Shackle for B-A71 34.02
MS20392-3C17 4 Clevis Pin for B-A71 0.44
A-929 2 Safety Belt – Black NM!
B12-A703 1 Panel – Seat Front NM!
0967-1 1 Baggage Compartment Canvas – B Models NM!
B-769-1 2 Headlining Bow – Front and Center – B Models NM!
B-770-1 1 Headlining Bow – Rear – B Models NM!

Floorboard Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
1850-2 1 Left Floorboard – For all models after 1945 NM!
1850-3 1 Right Floorboard – No cutout for right brake assembly NM!
1850-12 1 Right Floorboard – Cutout for right brake assembly NM!
AN515-R6-8 8 Screw NM!
B-716 As Required Heel Plate NM!
1850-14 1 Left Floorboard – Model F21 for Hydraulic Brakes NM!
1850-15 1 Right Floorboard – Model F21 for Hydraulic Brakes NM!
1133-6 2 Heel Plate – Model F21 NM!
B-720 1 Carpet – Red, Blue or Black – State part number of floorboards NM!

Rear Window Installation • Deluxe B Models

PART NUMBER QUANTITY NOMENCLATURE PRICE
1245 L/R 2 Rear Window Frame – State Left or Right NM!
1354 L/R 2 Window NM!
1244 1 Installation Kit for Rear Window NM!

Headliner Installation • Models F19 and F21

PART NUMBER QUANTITY NOMENCLATURE PRICE
2604 L/R 2 Nose Piece – State Left or Right NM!
2605 L/R 2 Front Section – State Left or Right NM!
2606-1 1 Center Section NM!
2607 1 Rear Section NM!

33
