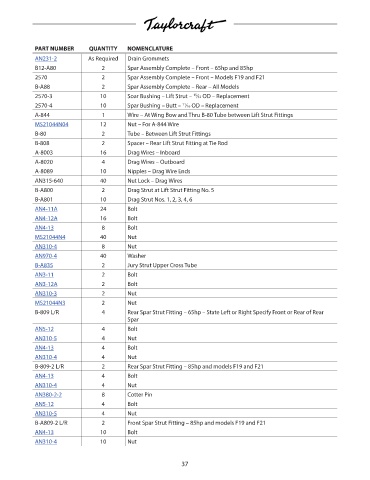

Page 41 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
AN231-2 As Required Drain Grommets 26
B12-A80 2 Spar Assembly Complete – Front – 65hp and 85hp NM!
2570 2 Spar Assembly Complete – Front – Models F19 and F21 NM!
B-A88 2 Spar Assembly Complete – Rear – All Models NM!
2570-3 10 Soar Bushing – Lift Strut – ⁄32 OD – Replacement NM!
15
11
2570-4 10 Spar Bushing – Butt – ⁄16 OD – Replacement NM!
A-844 1 Wire – At Wing Bow and Thru B-80 Tube between Lift Strut Fittings NM!
MS21044N04 12 Nut – For A-844 Wire 0.44
B-80 2 Tube – Between Lift Strut Fittings NM!
B-808 2 Spacer – Rear Lift Strut Fitting at Tie Rod NM!
A-8003 16 Drag Wires – Inboard NM!
A-8020 4 Drag Wires – Outboard NM!
A-8089 10 Nipples – Drag Wire Ends NM!
AN315-640 40 Nut Lock – Drag Wires NM!
B-A800 2 Drag Strut at Lift Strut Fitting No. 5 NM!
B-A801 10 Drag Strut Nos. 1, 2, 3, 4, 6 NM!
AN4-11A 24 Bolt 0.32
AN4-12A 16 Bolt 0.36
AN4-13 8 Bolt 0.68
MS21044N4 40 Nut 0.3
AN310-4 8 Nut 1.6
AN970-4 40 Washer 0.28
B-A835 2 Jury Strut Upper Cross Tube 288.36
AN3-11 2 Bolt 1.02
AN3-12A 2 Bolt 0.16
AN310-3 2 Nut 1.5
MS21044N3 2 Nut 0.24
B-809 L/R 4 Rear Spar Strut Fitting – 65hp – State Left or Right Specify Front or Rear of Rear NM!
Spar
AN5-12 4 Bolt 0.93
AN310-5 4 Nut 2
AN4-13 4 Bolt 0.68
AN310-4 4 Nut 1.6
B-809-2 L/R 2 Rear Spar Strut Fitting – 85hp and models F19 and F21 NM!
AN4-13 4 Bolt 0.68
AN310-4 4 Nut 1.6
AN380-2-2 8 Cotter Pin 0.04
AN5-12 4 Bolt 0.93
AN310-5 4 Nut 2
B-A809-2 L/R 2 Front Spar Strut Fitting – 85hp and models F19 and F21 NM!
AN4-13 10 Bolt 0.68
AN310-4 10 Nut 1.6

37
