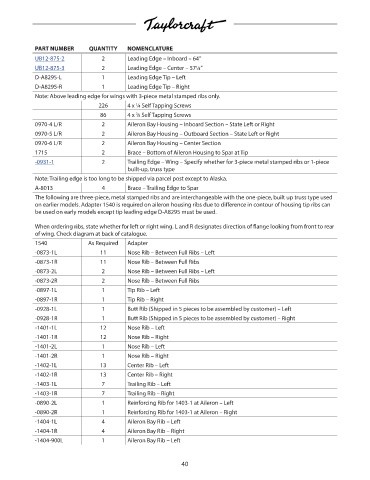

Page 44 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
UB12-875-2 2 Leading Edge – Inboard – 64” 133.29
UB12-875-3 2 Leading Edge – Center – 57¼” 179.71
D-A8295-L 1 Leading Edge Tip – Left NM!
D-A8295-R 1 Leading Edge Tip – Right NM!
Note: Above leading edge for wings with 3-piece metal stamped ribs only.
226 4 x ¼ Self Tapping Screws x
86 4 x ⁄8 Self Tapping Screws x
3
0970-4 L/R 2 Aileron Bay Housing – Inboard Section – State Left or Right NM!
0970-5 L/R 2 Aileron Bay Housing – Outboard Section – State Left or Right NM!
0970-6 L/R 2 Aileron Bay Housing – Center Section NM!
1715 2 Brace – Bottom of Aileron Housing to Spar at Tip NM!
-0931-1 2 Trailing Edge – Wing – Specify whether for 3-piece metal stamped ribs or 1-piece 554.94
built-up, truss type
Note: Trailing edge is too long to be shipped via parcel post except to Alaska.
A-8013 4 Brace – Trailing Edge to Spar NM!
The following are three-piece, metal stamped ribs and are interchangeable with the one-piece, built up truss type used
on earlier models. Adapter 1540 is required on aileron housing ribs due to difference in contour of housing tip ribs can
be used on early models except tip leading edge D-A8295 must be used.

When ordering ribs, state whether for left or right wing. L and R designates direction of flange looking from front to rear
of wing. Check diagram at back of catalogue.
1540 As Required Adapter NM!
-0873-1L 11 Nose Rib – Between Full Ribs – Left NM!
-0873-1R 11 Nose Rib – Between Full Ribs NM!
-0873-2L 2 Nose Rib – Between Full Ribs – Left NM!
-0873-2R 2 Nose Rib – Between Full Ribs NM!
-0897-1L 1 Tip Rib – Left NM!
-0897-1R 1 Tip Rib – Right NM!
-0928-1L 1 Butt Rib (Shipped in 5 pieces to be assembled by customer) – Left NM!
-0928-1R 1 Butt Rib (Shipped in 5 pieces to be assembled by customer) – Right NM!
-1401-1L 12 Nose Rib – Left NM!
-1401-1R 12 Nose Rib – Right NM!
-1401-2L 1 Nose Rib – Left NM!
-1401-2R 1 Nose Rib – Right NM!
-1402-1L 13 Center Rib – Left NM!
-1402-1R 13 Center Rib – Right NM!
-1403-1L 7 Trailing Rib – Left NM!
-1403-1R 7 Trailing Rib – Right NM!
-0890-2L 1 Reinforcing Rib for 1403-1 at Aileron – Left NM!
-0890-2R 1 Reinforcing Rib for 1403-1 at Aileron – Right NM!
-1404-1L 4 Aileron Bay Rib – Left NM!
-1404-1R 4 Aileron Bay Rib – Right NM!
-1404-900L 1 Aileron Bay Rib – Left NM!

40
