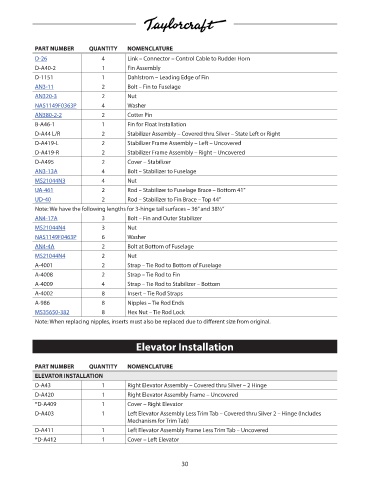

Page 34 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
D-26 4 Link – Connector – Control Cable to Rudder Horn 8.73
D-A40-2 1 Fin Assembly NM!
D-1151 1 Dahlstrom – Leading Edge of Fin NM!
AN3-11 2 Bolt – Fin to Fuselage 1.02
AN320-3 2 Nut 1
NAS1149F0363P 4 Washer 0.04
AN380-2-2 2 Cotter Pin 0.04
B-A46-1 1 Fin for Float Installation NM!
D-A44 L/R 2 Stabilizer Assembly – Covered thru Silver – State Left or Right NM!
D-A419-L 2 Stabilizer Frame Assembly – Left – Uncovered NM!
D-A419-R 2 Stabilizer Frame Assembly – Right – Uncovered NM!
D-A495 2 Cover – Stabilizer NM!
AN3-13A 4 Bolt – Stabilizer to Fuselage 0.3
MS21044N3 4 Nut 0.24
UA-461 2 Rod – Stabilizer to Fuselage Brace – Bottom 41” 33.49
UD-40 2 Rod – Stabilizer to Fin Brace – Top 44” 41.01
Note: We have the following lengths for 3-hinge tail surfaces – 36” and 38½”
AN4-17A 3 Bolt – Fin and Outer Stabilizer 0.54
MS21044N4 3 Nut 0.3
NAS1149F0463P 6 Washer 0.06
AN4-4A 2 Bolt at Bottom of Fuselage 0.3
MS21044N4 2 Nut 0.3
A-4001 2 Strap – Tie Rod to Bottom of Fuselage NM!
A-4008 2 Strap – Tie Rod to Fin NM!
A-4009 4 Strap – Tie Rod to Stabilizer – Bottom NM!
A-4002 8 Insert – Tie Rod Straps NM!
A-986 8 Nipples – Tie Rod Ends NM!
MS35650-382 8 Hex Nut – Tie Rod Lock 0.88
Note: When replacing nipples, inserts must also be replaced due to different size from original.

Elevator Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
ELEVATOR INSTALLATION
D-A43 1 Right Elevator Assembly – Covered thru Silver – 2 Hinge NM!
D-A420 1 Right Elevator Assembly Frame – Uncovered NM!
*D-A409 1 Cover – Right Elevator NM!
D-A403 1 Left Elevator Assembly Less Trim Tab – Covered thru Silver 2 – Hinge (Includes NM!
Mechanism for Trim Tab)
D-A411 1 Left Elevator Assembly Frame Less Trim Tab – Uncovered NM!
*D-A412 1 Cover – Left Elevator NM!
