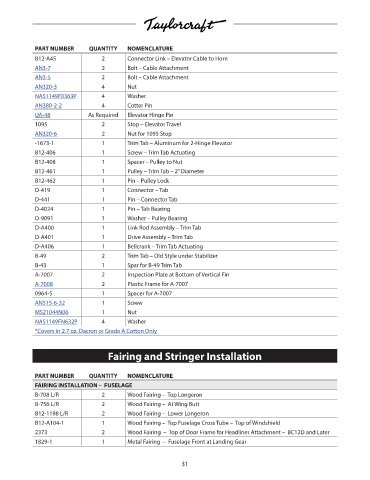

Page 35 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
B12-A45 2 Connector Link – Elevator Cable to Horn NM!
AN3-7 2 Bolt – Cable Attachment 1
AN3-5 2 Bolt – Cable Attachment 0.6
AN320-3 4 Nut 1
NAS1149F0363P 4 Washer 0.04
AN380-2-2 4 Cotter Pin 0.04
UA-48 As Required Elevator Hinge Pin 29.97
1095 2 Stop – Elevator Travel NM!
AN320-6 2 Nut for 1095 Stop 1
-1673-1 1 Trim Tab – Aluminum for 2-Hinge Elevator NM!
B12-406 1 Screw – Trim Tab Actuating NM!
B12-408 1 Spacer – Pulley to Nut NM!
B12-461 1 Pulley – Trim Tab – 2” Diameter NM!
B12-462 1 Pin – Pulley Lock NM!
D-419 1 Connector – Tab NM!
D-441 1 Pin – Connector Tab NM!
D-4024 1 Pin – Tab Bearing NM!
D-9091 1 Washer – Pulley Bearing NM!
D-A400 1 Link Rod Assembly – Trim Tab NM!
D-A401 1 Drive Assembly – Trim Tab NM!
D-A406 1 Bellcrank – Trim Tab Actuating NM!
B-49 2 Trim Tab – Old Style under Stabilizer NM!
B-43 1 Spar for B-49 Trim Tab NM!
A-7007 2 Inspection Plate at Bottom of Vertical Fin NM!
A-7008 2 Plastic Frame for A-7007 2.2
0964-5 1 Spacer for A-7007 NM!
AN515-6-32 1 Screw 0.14
MS21044N06 1 Nut 0.32
NAS1149FN632P 4 Washer 0.06
*Covers in 2.7 oz. Dacron or Grade A Cotton Only

Fairing and Stringer Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
FAIRING INSTALLATION – FUSELAGE
B-708 L/R 2 Wood Fairing – Top Longeron NM!
B-756 L/R 2 Wood Fairing – At Wing Butt NM!
B12-1198 L/R 2 Wood Fairing – Lower Longeron NM!
B12-A104-1 1 Wood Fairing – Top Fuselage Cross Tube – Top of Windshield NM!
2373 2 Wood Fairing – Top of Door Frame for Headliner Attachment – BC12D and Later NM!
1829-1 1 Metal Fairing – Fuselage Front at Landing Gear NM!
