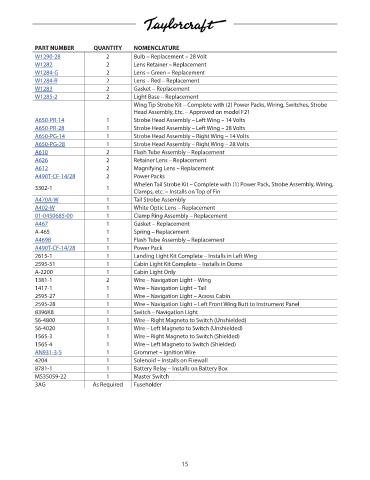

Page 19 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
W1290-28 2 Bulb – Replacement – 28 Volt 95.16
W1282 2 Lens Retainer – Replacement 81.9
W1284-G 2 Lens – Green – Replacement 81.9
W1284-R 2 Lens – Red – Replacement 81.9
W1283 2 Gasket – Replacement 21.84
W1285-2 2 Light Base – Replacement 155.22
Wing Tip Strobe Kit – Complete with (2) Power Packs, Wiring, Switches, Strobe
Head Assembly, Etc. – Approved on model F21
A650-PR-14 1 Strobe Head Assembly – Left Wing – 14 Volts 709.8
A650-PR-28 1 Strobe Head Assembly – Left Wing – 28 Volts 709.8
A650-PG-14 1 Strobe Head Assembly – Right Wing – 14 Volts 709.8
A650-PG-28 1 Strobe Head Assembly – Right Wing – 28 Volts 709.8
A610 2 Flash Tube Assembly – Replacement 132
A626 2 Retainer Lens – Replacement 66.3
A612 2 Magnifying Lens – Replacement 66.3
A490T-CF-14/28 2 Power Packs 830.7
Whelen Tail Strobe Kit – Complete with (1) Power Pack, Strobe Assembly, Wiring,
3302-1 1 NM!
Clamps, etc. – Installs on Top of Fin
A470A-W 1 Tail Strobe Assembly 241.8
A402-W 1 White Optic Lens – Replacement 69.42
01-0450685-00 1 Clamp Ring Assembly – Replacement 21.84
A467 1 Gasket – Replacement 16.38
A-465 1 Spring – Replacement NM!
A469B 1 Flash Tube Assembly – Replacement 188.76
A490T-CF-14/28 1 Power Pack 830.7
2615-1 1 Landing Light Kit Complete – Installs in Left Wing NM!
2595-51 1 Cabin Light Kit Complete – Installs in Dome NM!
A-2200 1 Cabin Light Only NM!
1381-1 2 Wire – Navigation Light – Wing NM!
1417-1 1 Wire – Navigation Light – Tail NM!
2595-27 1 Wire – Navigation Light – Across Cabin NM!
2595-28 1 Wire – Navigation Light – Left Front Wing Butt to Instrument Panel NM!
8396K8 1 Switch – Navigation Light NM!
S6-4800 1 Wire – Right Magneto to Switch (Unshielded) NM!
S6-4020 1 Wire – Left Magneto to Switch (Unshielded) NM!
1565-3 1 Wire – Right Magneto to Switch (Shielded) NM!
1565-4 1 Wire – Left Magneto to Switch (Shielded) NM!
AN931-3-5 1 Grommet – Ignition Wire 1.46
4204 1 Solenoid – Installs on Firewall NM!
8781-1 1 Battery Relay – Installs on Battery Box NM!
MS35059-22 1 Master Switch NM!
3AG As Required Fuseholder NM!
