Page 11 - Luscombe Silvaire Model 8 Master Parts List

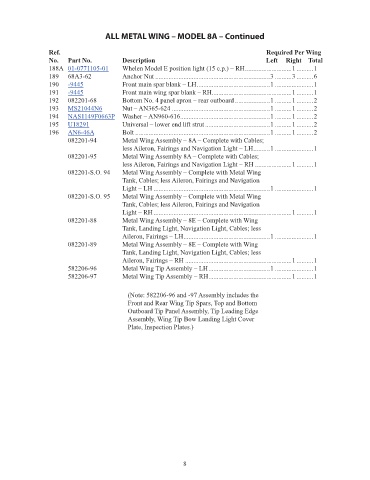

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part No. Description Left Right Total
188A 01-0771105-01 Whelen Model E position light (15 c.p.) – RH ............................1 ..........1 311.22
189 68A3-62 Anchor Nut .....................................................................3 ..........3 ..........6 NM!
190 -9445 Front main spar blank – LH ............................................1 .......................1 446.98
191 -9445 Front main wing spar blank – RH ................................................1 ..........1 446.98
192 082201-68 Bottom No. 4 panel apron – rear outboard .....................1 ..........1 ..........2 NM!
193 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
194 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
195 U18291 Universal – lower end lift strut .......................................1 ..........1 ..........2 206.3
196 AN6-46A Bolt .................................................................................1 ..........1 ..........2 4
082201-94 Metal Wing Assembly – 8A – Complete with Cables; NM!
less Aileron, Fairings and Navigation Light – LH ..........1 .......................1
082201-95 Metal Wing Assembly 8A – Complete with Cables; NM!
less Aileron, Fairings and Navigation Light – RH ......................1 ..........1
082201-S.O. 94 Metal Wing Assembly – Complete with Metal Wing NM!
Tank, Cables; less Aileron, Fairings and Navigation
Light – LH ......................................................................1 .......................1
082201-S.O. 95 Metal Wing Assembly – Complete with Metal Wing NM!
Tank, Cables; less Aileron, Fairings and Navigation
Light – RH ...................................................................................1 ..........1
082201-88 Metal Wing Assembly – 8E – Complete with Wing NM!
Tank, Landing Light, Navigation Light, Cables; less
Aileron, Fairings – LH ....................................................1 .......................1
082201-89 Metal Wing Assembly – 8E – Complete with Wing NM!
Tank, Landing Light, Navigation Light, Cables; less
Aileron, Fairings – RH ................................................................1 ..........1
582206-96 Metal Wing Tip Assembly – LH .....................................1 .......................1 NM!
582206-97 Metal Wing Tip Assembly – RH ..................................................1 ..........1 NM!

(Note: 582206-96 and -97 Assembly includes the
Front and Rear Wing Tip Spars, Top and Bottom
Outboard Tip Panel Assembly, Tip Leading Edge
Assembly, Wing Tip Bow Landing Light Cover
Plate, Inspection Plates.)

8
