Page 6 - Luscombe Silvaire Model 8 Master Parts List

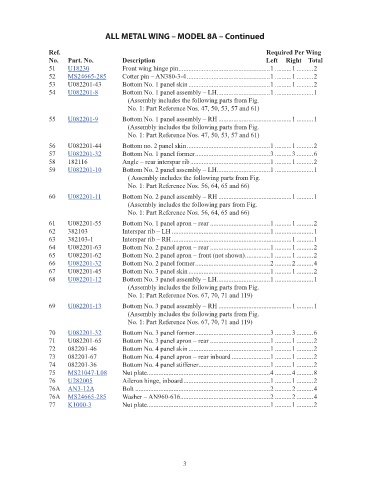

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part. No. Description Left Right Total
51 U18230 Front wing hinge pin .......................................................1 ..........1 ..........2 74.06
52 MS24665-285 Cotter pin – AN380-3-4 ..................................................1 ..........1 ..........2 0.04
53 U082201-43 Bottom No. 1 panel skin .................................................1 ..........1 ..........2 NM!
54 U082201-8 Bottom No. 1 panel assembly – LH ................................1 .......................1 666.08
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 47, 50, 53, 57 and 61)

55 U082201-9 Bottom No. 1 panel assembly – RH ............................................1 ..........1 666.08
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 47, 50, 53, 57 and 61)
56 U082201-44 Bottom no. 2 panel skin ..................................................1 ..........1 ..........2 NM!
57 U082201-32 Bottom No. 1 panel former .............................................3 ..........3 ..........6 115.73
58 182116 Angle – rear interspar rib ................................................1 ..........1 ..........2 NM!
59 U082201-10 Bottom No. 2 panel assembly – LH ................................1 .......................1 601.54
( Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 56, 64, 65 and 66)

60 U082201-11 Bottom No. 2 panel assembly – RH ............................................1 ..........1 601.54
(Assembly includes the following pars from Fig.
No. 1: Part Reference Nos. 56, 64, 65 and 66)
61 U082201-55 Bottom No. 1 panel apron – rear ....................................1 ..........1 ..........2 NM!
62 382103 Interspar rib – LH ...........................................................1 .......................1 NM!
63 382103-1 Interspar rib – RH ........................................................................1 ..........1 NM!
64 U082201-63 Bottom No. 2 panel apron – rear ....................................1 ..........1 ..........2 NM!
65 U082201-62 Bottom No. 2 panel apron – front (not shown) ...............1 ..........1 ..........2 NM!
66 U082201-32 Bottom No. 2 panel former .............................................2 ..........2 ..........4 115.73
67 U082201-45 Bottom No. 3 panel skin .................................................1 ..........1 ..........2 NM!
68 U082201-12 Bottom No. 3 panel assembly – LH ................................1 .......................1 595.5
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 67, 70, 71 and 119)
69 U082201-13 Bottom No. 3 panel assembly – RH ............................................1 ..........1 595.5
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 67, 70, 71 and 119)

70 U082201-32 Bottom No. 3 panel former .............................................3 ..........3 ..........6 115.73
71 U082201-65 Bottom No. 3 panel apron – rear ....................................1 ..........1 ..........2 NM!
72 082201-46 Bottom No. 4 panel skin .................................................1 ..........1 ..........2 NM!
73 082201-67 Bottom No. 4 panel apron – rear inboard .......................1 ..........1 ..........2 NM!
74 082201-36 Bottom No. 4 panel stiffener ...........................................1 ..........1 ..........2 NM!
75 MS21047-L08 Nut plate ..........................................................................4 ..........4 ..........8 0.56
76 U282005 Aileron hinge, inboard ....................................................1 ..........1 ..........2 212.06
76A AN3-12A Bolt .................................................................................2 ..........2 ..........4 0.16
76A MS24665-285 Washer – AN960-616 ......................................................2 ..........2 ..........4 0.04
77 K1000-3 Nut plate ..........................................................................1 ..........1 ..........2 0.26
