Page 9 - Luscombe Silvaire Model 8 Master Parts List

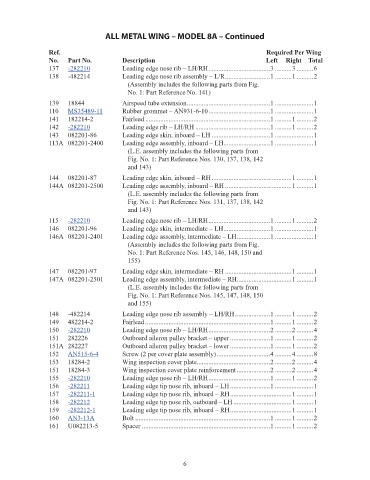

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part No. Description Left Right Total
137 -282210 Leading edge nose rib – LH/RH .....................................3 ..........3 ..........6 30.71
138 -482214 Leading edge nose rib assembly – L/R ...........................1 ..........1 ..........2 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference No. 141)
139 18844 Airspeed tube extension ..................................................1 .......................1 NM!
110 MS35489-11 Rubber grommet – AN931-6-10 .....................................1 .......................1 0.6
141 182214-2 Fairlead ...........................................................................1 ..........1 ..........2 NM!
142 -282210 Leading edge rib – LH/RH .............................................1 ..........1 ..........2 30.71
143 082201-86 Leading edge skin, inboard – LH ...................................1 .......................1 NM!
113A 082201-2400 Leading edge assembly, inboard – LH............................1 .......................1 NM!
(L.E. assembly includes the following parts from
Fig. No. 1: Part Reference Nos. 130, 137, 138, 142
and 143)
144 082201-87 Leading edge skin, inboard – RH ................................................1 ..........1 NM!
144A 082201-2500 Leading edge assembly, inboard – RH ........................................1 ..........1 NM!
(L.E. assembly includes the following parts from
Fig. No. 1: Part Reference Nos. 131, 137, 138, 142
and 143)
115 -282210 Leading edge nose rib – LH/RH .....................................1 ..........1 ..........2 30.71
146 082201-96 Leading edge skin, intermediate – LH ............................1 .......................1 NM!
146A 082201-2401 Leading edge assembly, intermediate – LH ....................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 145, 146, 148, 150 and
155)
147 082201-97 Leading edge skin, intermediate – RH ........................................1 ..........1 NM!
147A 082201-2501 Leading edge assembly, intermediate – RH.................................1 ..........1 NM!
(L.E. assembly includes the following parts from
Fig. No. 1: Part Reference Nos. 145, 147, 148, 150
and 155)
148 -482214 Leading edge nose rib assembly – LH/RH .....................1 ..........1 ..........2 NM!
149 482214-2 Fairlead ...........................................................................1 ..........1 ..........2 NM!
150 -282210 Leading edge nose rib – LH/RH .....................................2 ..........2 ..........4 30.71
151 282226 Outboard aileron pulley bracket – upper ........................1 ..........1 ..........2 NM!
151A 282227 Outboard aileron pulley bracket – lower ........................1 ..........1 ..........2 NM!
152 AN515-6-4 Screw (2 per cover plate assembly) ................................4 ..........4 ..........8 0.03
153 18284-2 Wing inspection cover plate............................................2 ..........2 ..........4 NM!
151 18284-3 Wing inspection cover plate reinforcement ....................2 ..........2 ..........4 NM!
155 -282210 Leading edge nose rib – LH/RH .....................................1 ..........1 ..........2 30.71
156 -282211 Leading edge tip nose rib, inboard – LH ........................1 .......................1 55.18
157 -282211-1 Leading edge tip nose rib, inboard – RH .....................................1 ..........1 55.18
158 -282212 Leading edge tip nose rib, outboard – LH ...................................1 ..........1 55.18
159 -282212-1 Leading edge tip nose rib, inboard – RH .....................................1 ..........1 55.18
160 AN3-13A Bolt .................................................................................1 ..........1 ..........2 0.3
161 U082213-5 Spacer .............................................................................1 ..........1 ..........2 NM!

6
