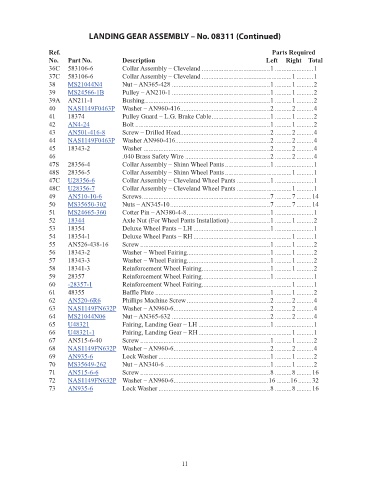

Page 14 - Luscombe Silvaire Model 8 Master Parts List

LANDING GEAR ASSEMBLY – No. 08311 (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
36C 583106-6 Collar Assembly – Cleveland .........................................1 .......................1 NM!
37C 583106-6 Collar Assembly – Cleveland ......................................................1 ..........1 NM!
38 MS21044N4 Nut – AN365-428 ...........................................................1 ..........1 ..........2 0.3
39 MS24566-1B Pulley – AN210-1 ...........................................................1 ..........1 ..........2 41.72
39A AN211-1 Bushing ...........................................................................1 ..........1 ..........2 NM!
40 NAS1149F0463P Washer – AN960-416 ......................................................2 ..........2 ..........4 0.06
41 18374 Pulley Guard – L.G. Brake Cable ...................................1 ..........1 ..........2 NM!
42 AN4-24 Bolt .................................................................................1 ..........1 ..........2 0.88
43 AN501-416-8 Screw – Drilled Head ......................................................2 ..........2 ..........4 1.08
44 NAS1149F0463P Washer AN960-416 .........................................................2 ..........2 ..........4 0.06
45 18343-2 Washer ............................................................................2 ..........2 ..........4 NM!
46 .040 Brass Safety Wire ...................................................2 ..........2 ..........4 X
47S 28356-4 Collar Assembly – Shinn Wheel Pants ...........................1 .......................1 NM!
48S 28356-5 Collar Assembly – Shinn Wheel Pants ........................................1 ..........1 NM!
47C U28356-6 Collar Assembly – Cleveland Wheel Pants ....................1 .......................1 191.59
48C U28356-7 Collar Assembly – Cleveland Wheel Pants .................................1 ..........1 191.59
49 AN510-10-6 Screws .............................................................................7 ..........7 .........14 0.45
50 MS35650-302 Nuts – AN345-10 ............................................................7 ..........7 .........14 0.14
51 MS24665-360 Cotter Pin – AN380-4-8 ..................................................1 .......................1 0.13
52 18344 Axle Nut (For Wheel Pants Installation) ........................1 ..........1 ..........2 8.37
53 18354 Deluxe Wheel Pants – LH ..............................................1 .......................1 NM!
54 18354-1 Deluxe Wheel Pants – RH ...........................................................1 ..........1 NM!
55 AN526-438-16 Screw ..............................................................................1 ..........1 ..........2 NM!
56 18343-2 Washer – Wheel Fairing ..................................................1 ..........1 ..........2 NM!
57 18343-3 Washer – Wheel Fairing ..................................................1 ..........1 ..........2 NM!
58 18341-3 Reinforcement Wheel Fairing .........................................1 ..........1 ..........2 NM!
59 28357 Reinforcement Wheel Fairing .........................................1 .......................1 NM!
60 -28357-1 Reinforcement Wheel Fairing ......................................................1 ..........1 94.33
61 48355 Baffle Plate .....................................................................1 ..........1 ..........2 NM!
62 AN520-6R6 Phillips Machine Screw ..................................................2 ..........2 ..........4 0.14
63 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
64 MS21044N06 Nut – AN365-632 ...........................................................2 ..........2 ..........4 0.32
65 U48321 Fairing, Landing Gear – LH ...........................................1 .......................1 252
66 U48321-1 Pairing, Landing Gear – RH ........................................................1 ..........1 252
67 AN515-6-40 Screw ..............................................................................1 ..........1 ..........2 NM!
68 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
69 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
70 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
71 AN515-6-6 Screw ..............................................................................8 ..........8 .........16 0.11
72 NAS1149FN632P Washer – AN960-6 .........................................................16 ........16 ........32 0.06
73 AN935-6 Lock Washer ...................................................................8 ..........8 .........16 0.02
