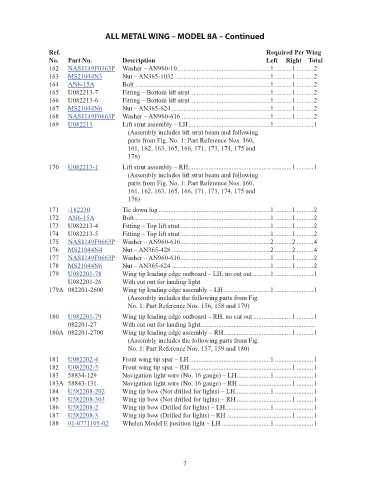

Page 10 - Luscombe Silvaire Model 8 Master Parts List

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part No. Description Left Right Total
162 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
163 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
164 AN6-15A Bolt .................................................................................1 ..........1 ..........2 0.68
165 U082213-7 Fitting – Bottom lift strut ................................................1 ..........1 ..........2 NM!
166 U082213-6 Fitting – Bottom lift strut ................................................1 ..........1 ..........2 NM!
167 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
168 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
169 U082213 Lift strut assembly – LH .................................................1 .......................1 2579.68
(Assembly includes lift strut beam and following
parts from Fig. No. 1: Part Reference Nos. 160,
161, 162, 163, 165, 166, 171, 173, 174, 175 and
176)

170 U082213-1 Lift strut assembly – RH ..............................................................1 ..........1 2579.68
(Assembly includes lift strut beam and following
parts from Fig. No. 1: Part Reference Nos. 160,
161, 162, 163, 165, 166, 171, 173, 174, 175 and
176)
171 -182230 Tie down lug ...................................................................1 ..........1 ..........2 66.92
172 AN6-15A Bolt .................................................................................1 ..........1 ..........2 0.68
173 U082213-4 Fitting – Top lift strut ......................................................1 ..........1 ..........2 NM!
174 U082213-5 Fitting – Top lift strut ......................................................1 ..........1 ..........2 NM!
175 NAS1149F0663P Washer – AN960-616 ......................................................2 ..........2 ..........4 0.11
176 MS21044N4 Nut – AN365-428 ...........................................................2 ..........2 ..........4 0.3
177 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
178 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
179 U082201-78 Wing tip leading edge outboard – LH, no cut out...........1 .......................1 195.1
U082201-26 With cut out for landing light NM!
179A 082201-2600 Wing tip leading edge assembly – LH ............................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 156, 158 and 179)
180 U082201-79 Wing tip leading edge outboard – RH, no cut out .......................1 ..........1 195.1
082201-27 With cut out for landing light..................................................................... NM!
180A 082201-2700 Wing tip leading edge assembly – RH .........................................1 ..........1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 157, 159 and 180)
181 U082202-4 Front wing tip spar – LH ................................................1 .......................1 207.38
182 U082202-5 Front wing tip spar – RH .............................................................1 ..........1 207.38
183 58834-129 Navigation light wire (No. 16 gauge) – LH ....................1 .......................1 NM!
183A 58843-131 Navigation light wire (No. 16 gauge) – RH ................................1 ..........1 NM!
184 U582208-202 Wing tip bow (Not drilled for lights) – LH.....................1 .......................1 650.37
185 U582208-303 Wing tip bow (Not drilled for lights) – RH .................................1 ..........1 650.37
186 U582208-2 Wing tip bow (Drilled for lights) – LH ...........................1 .......................1 658.69
187 U582208-3 Wing tip bow (Drilled for lights) – RH .......................................1 ..........1 650.37
188 01-0771105-02 Whelen Model E position light – LH .............................1 .......................1 311.22
