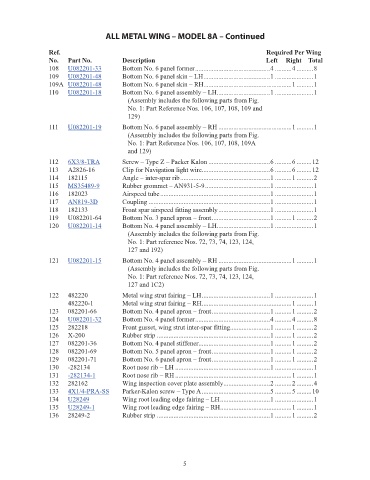

Page 8 - Luscombe Silvaire Model 8 Master Parts List

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part No. Description Left Right Total
108 U082201-33 Bottom No. 6 panel former .............................................4 ..........4 ..........8 76.88
109 U082201-48 Bottom No. 6 panel skin – LH ........................................1 .......................1 170.06
109A U082201-48 Bottom No. 6 panel skin – RH .....................................................1 ..........1 170.06
110 U082201-18 Bottom No. 6 panel assembly – LH ................................1 .......................1 759.14
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 106, 107, 108, 109 and
129)
111 U082201-19 Bottom No. 6 panel assembly – RH ............................................1 ..........1 759.14
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 106, 107, 108, 109A
and 129)
112 6X3/8-TRA Screw – Type Z – Packer Kalon .....................................6 ..........6 .........12 0.06
113 A2826-16 Clip for Navigation light wire .........................................6 ..........6 .........12 NM!
114 182115 Angle – inter-spar rib ......................................................1 ..........1 ..........2 NM!
115 MS35489-9 Rubber grommet – AN931-5-9 .......................................1 .......................1 0.78
116 182023 Airspeed tube ..................................................................1 .......................1 NM!
117 AN819-3D Coupling .........................................................................1 .......................1 1
118 182133 Front spar airspeed fitting assembly ...............................1 .......................1 NM!
119 U082201-64 Bottom No. 3 panel apron – front ...................................1 ..........1 ..........2 NM!
120 U082201-14 Bottom No. 4 panel assembly – LH ................................1 .......................1 606.92
(Assembly includes the following parts from Fig.
No. 1: Part reference Nos. 72, 73, 74, 123, 124,
127 and 192)

121 U082201-15 Bottom No. 4 panel assembly – RH ............................................1 ..........1 606.92
(Assembly includes the following parts from Fig.
No. 1: Part reference Nos. 72, 73, 74, 123, 124,
127 and 1C2)
122 482220 Metal wing strut fairing – LH .........................................1 .......................1 NM!
482220-1 Metal wing strut fairing – RH ......................................................1 ..........1 NM!
123 082201-66 Bottom No. 4 panel apron – front ...................................1 ..........1 ..........2 NM!
124 U082201-32 Bottom No. 4 panel former .............................................4 ..........4 ..........8 115.73
125 282218 Front gusset, wing strut inter-spar fitting ........................1 ..........1 ..........2 NM!
126 X-200 Rubber strip ....................................................................1 ..........1 ..........2 NM!
127 082201-36 Bottom No. 4 panel stiffener ...........................................1 ..........1 ..........2 NM!
128 082201-69 Bottom No. 5 panel apron – front ...................................1 ..........1 ..........2 NM!
129 082201-71 Bottom No. 6 panel apron – front ...................................1 ..........1 ..........2 NM!
130 -282134 Root nose rib – LH .........................................................1 .......................1 NM!
131 -282134-1 Root nose rib – RH ......................................................................1 ..........1 173.37
132 282162 Wing inspection cover plate assembly ............................2 ..........2 ..........4 NM!
133 4X1/4-PRA-SS Parker-Kalon screw – Type A .........................................5 ..........5 .........10 0.02
134 U28249 Wing root leading edge fairing – LH ..............................1 .......................1 48.2
135 U28249-1 Wing root leading edge fairing – RH ...........................................1 ..........1 48.2
136 28249-2 Rubber strip ....................................................................1 ..........1 ..........2 NM!

5
