Page 4 - Luscombe Silvaire Model 8 Master Parts List

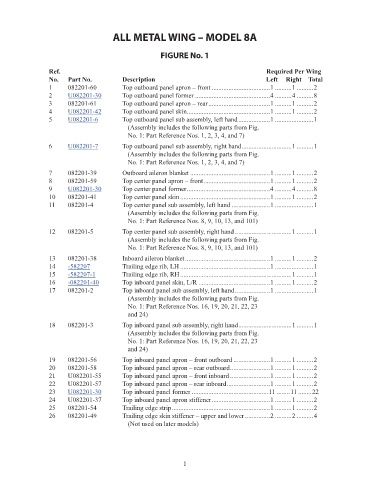

ALL METAL WING – MODEL 8A

FIGURE No. 1

Ref. Required Per Wing
No. Part No. Description Left Right Total
1 082201-60 Top outboard panel apron – front ...................................1 ..........1 ..........2 NM!
2 U082201-30 Top outboard panel former .............................................4 ..........4 ..........8 101.1
3 082201-61 Top outboard panel apron – rear .....................................1 ..........1 ..........2 NM!
4 U082201-42 Top outboard panel skin ..................................................1 ..........1 ..........2 144.34
5 U082201-6 Top outboard panel sub assembly, left hand ...................1 .......................1 804.47
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 1, 2, 3, 4, and 7)
6 U082201-7 Top outboard panel sub assembly, right hand ..............................1 ..........1 771.27
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 1, 2, 3, 4, and 7)

7 082201-39 Outboard aileron blanket ................................................1 ..........1 ..........2 NM!
8 082201-59 Top center panel apron – front ........................................1 ..........1 ..........2 NM!
9 U082201-30 Top center panel former ..................................................4 ..........4 ..........8 101.1
10 082201-41 Top center panel skin ......................................................1 ..........1 ..........2 NM!
11 082201-4 Top center panel sub assembly, left hand .......................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 8, 9, 10, 13, and 101)
12 082201-5 Top center panel sub assembly, right hand ..................................1 ..........1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 8, 9, 10, 13, and 101)
13 082201-38 Inboard aileron blanket ...................................................1 ..........1 ..........2 NM!
14 -582207 Trailing edge rib, LH ......................................................1 .......................1 42.97
15 -582207-1 Trailing edge rib, RH ...................................................................1 ..........1 42.97
16 -082201-40 Top inboard panel skin, L/R ...........................................1 ..........1 ..........2 123.22
17 082201-2 Top inboard panel sub assembly, left hand .....................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 16, 19, 20, 21, 22, 23
and 24)
18 082201-3 Top inboard panel sub assembly, right hand ................................1 ..........1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 16, 19, 20, 21, 22, 23
and 24)
19 082201-56 Top inboard panel apron – front outboard ......................1 ..........1 ..........2 NM!
20 082201-58 Top inboard panel apron – rear outboard ........................1 ..........1 ..........2 NM!
21 U082201-55 Top inboard panel apron – front inboard ........................1 ..........1 ..........2 NM!
22 U082201-57 Top inboard panel apron – rear inboard ..........................1 ..........1 ..........2 NM!
23 U082201-30 Top inboard panel former ..............................................11 ........11 ........22 101.1
24 U082201-37 Top inboard panel apron stiffener ...................................1 ..........1 ..........2 NM!
25 082201-54 Trailing edge strip ...........................................................1 ..........1 ..........2 NM!
26 082201-49 Trailing edge skin stiffener – upper and lower ...............2 ..........2 ..........4 NM!
(Not used on later models)

1
