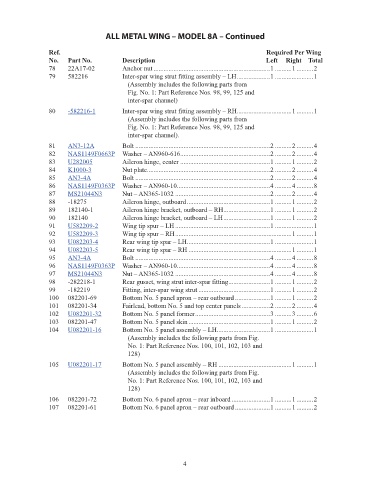

Page 7 - Luscombe Silvaire Model 8 Master Parts List

ALL METAL WING – MODEL 8A – Continued

Ref. Required Per Wing
No. Part No. Description Left Right Total
78 22A17-02 Anchor nut ......................................................................1 ..........1 ..........2 NM!
79 582216 Inter-spar wing strut fitting assembly – LH ....................1 .......................1 NM!
(Assembly includes the following parts from
Fig. No. 1: Part Reference Nos. 98, 99, 125 and
inter-spar channel)
80 -582216-1 Inter-spar wing strut fitting assembly – RH .................................1 ..........1 34.44
(Assembly includes the following parts from
Fig. No. 1: Part Reference Nos. 98, 99, 125 and
inter-spar channel).
81 AN3-12A Bolt .................................................................................2 ..........2 ..........4 0.16
82 NAS1149F0663P Washer – AN960-616 ......................................................2 ..........2 ..........4 0.11
83 U282005 Aileron hinge, center ......................................................1 ..........1 ..........2 212.06
84 K1000-3 Nut plate ..........................................................................2 ..........2 ..........4 0.26
85 AN3-4A Bolt .................................................................................2 ..........2 ..........4 0.2
86 NAS1149F0363P Washer – AN960-10 ........................................................4 ..........4 ..........8 0.04
87 MS21044N3 Nut – AN365-1032 .........................................................2 ..........2 ..........4 0.24
88 -18275 Aileron hinge, outboard ..................................................1 ..........1 ..........2 NM!
89 182140-1 Aileron hinge bracket, outboard – RH ............................1 ..........1 ..........2 NM!
90 182140 Aileron hinge bracket, outboard – LH ............................1 ..........1 ..........2 NM!
91 U582209-2 Wing tip spur – LH .........................................................1 .......................1 85.97
92 U582209-3 Wing tip spur – RH ......................................................................1 ..........1 85.97
93 U082203-4 Rear wing tip spar – LH ..................................................1 .......................1 179.47
94 U082203-5 Rear wing tip spar – RH ..............................................................1 ..........1 179.47
95 AN3-4A Bolt .................................................................................4 ..........4 ..........8 0.2
96 NAS1149F0363P Washer – AN960-10 ........................................................4 ..........4 ..........8 0.04
97 MS21044N3 Nut – AN365-1032 .........................................................4 ..........4 ..........8 0.24
98 -282218-1 Rear gusset, wing strut inter-spar fitting .........................1 ..........1 ..........2 NM!
99 -182219 Fitting, inter-spar wing strut ...........................................1 ..........1 ..........2 NM!
100 082201-69 Bottom No. 5 panel apron – rear outboard .....................1 ..........1 ..........2 NM!
101 082201-34 Fairlead, bottom No. 5 and top center panels .................2 ..........2 ..........4 NM!
102 U082201-32 Bottom No. 5 panel former .............................................3 ..........3 ..........6 115.73
103 082201-47 Bottom No. 5 panel skin .................................................1 ..........1 ..........2 NM!
104 U082201-16 Bottom No. 5 panel assembly – LH ................................1 .......................1 601.02
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 100, 101, 102, 103 and
128)
105 U082201-17 Bottom No. 5 panel assembly – RH ............................................1 ..........1 601.02
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 100, 101, 102, 103 and
128)
106 082201-72 Bottom No. 6 panel apron – rear inboard .......................1 ..........1 ..........2 NM!
107 082201-61 Bottom No. 6 panel apron – rear outboard .....................1 ..........1 ..........2 NM!

4
