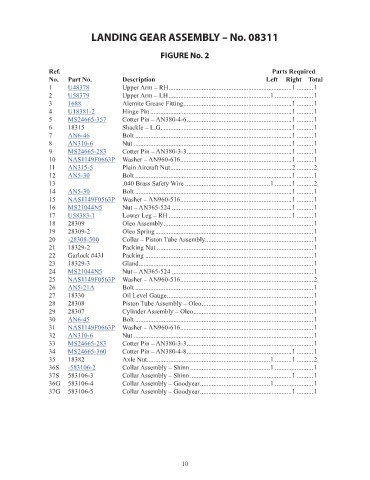

Page 13 - Luscombe Silvaire Model 8 Master Parts List

LANDING GEAR ASSEMBLY – No. 08311

FIGURE No. 2

Ref. Parts Required
No. Part No. Description Left Right Total
1 U48378 Upper Arm – RH ..........................................................................1 ..........1 1741.49
2 U58379 Upper Arm – LH .............................................................1 .......................1 1741.49
3 1688 Alemite Grease Fitting .................................................................1 ..........1 2.26
4 U18381-2 Hinge Pin .....................................................................................1 ..........1 76.25
5 MS24665-357 Cotter Pin – AN380-4-6 ...............................................................1 ..........1 0.08
6 18315 Shackle – L.G. .............................................................................1 ..........1 NM!
7 AN6-46 Bolt ..............................................................................................1 ..........1 6.2
8 AN310-6 Nut ...............................................................................................1 ..........1 1.8
9 MS24665-283 Cotter Pin – AN380-3-3 ...............................................................1 ..........1 0.04
10 NAS1149F0663P Washer – AN960-616 ...................................................................1 ..........1 0.11
11 AN315-5 Plain Aircraft Nut .........................................................................2 ..........2 0.26
12 AN5-30 Bolt ..............................................................................................1 ..........1 1.7
13 .040 Brass Safety Wire ...................................................1 ..........1 ..........2 X
14 AN5-30 Bolt ..............................................................................................1 ..........1 1.7
15 NAS1149F0563P Washer – AN960-516 ...................................................................1 ..........1 0.08
16 MS21044N5 Nut – AN365-524 ........................................................................1 ..........1 0.4
17 U58383-1 Lower Leg – RH ..........................................................................1 ..........1 1212.4
18 28309 Oleo Assembly ..........................................................................................1 NM!
19 28309-2 Oleo Spring ...............................................................................................1 NM!
20 -28308-500 Collar – Piston Tube Assembly .................................................................1 54.17
21 18329-2 Packing Nut ..............................................................................................1 NM!
22 Garlock #431 Packing .....................................................................................................1 NM!
23 18329-3 Gland .........................................................................................................1 NM!
24 MS21044N5 Nut – AN365-524 .....................................................................................1 0.4
25 NAS1149F0563P Washer – AN960-516 ................................................................................2 0.08
26 AN5-21A Bolt ...........................................................................................................1 0.84
27 18330 Oil Level Gauge ........................................................................................1 NM!
28 28308 Piston Tube Assembly – Oleo ...................................................................1 NM!
29 28307 Cylinder Assembly – Oleo ........................................................................1 NM!
30 AN6-45 Bolt ...........................................................................................................1 5.4
31 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
32 AN310-6 Nut ............................................................................................................1 1.8
33 MS24665-283 Cotter Pin – AN380-3-3 ............................................................................1 0.04
34 MS24665-360 Cotter Pin – AN380-4-8 ...............................................................1 ..........1 0.13
35 18382 Axle Nut ..........................................................................1 ..........1 ..........2 NM!
36S -583106-2 Collar Assembly – Shinn ................................................1 .......................1 137.76
37S 583106-3 Collar Assembly – Shinn .............................................................1 ..........1 NM!
36G 583106-4 Collar Assembly – Goodyear ..........................................1 .......................1 NM!
37G 583106-5 Collar Assembly – Goodyear .......................................................1 ..........1 NM!
