Page 16 - Luscombe Silvaire Model 8 Master Parts List

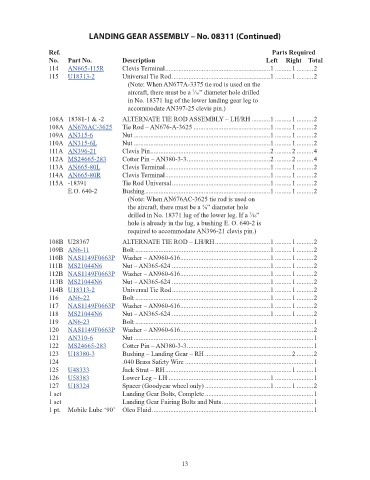

LANDING GEAR ASSEMBLY – No. 08311 (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
114 AN665-115R Clevis Terminal ...............................................................1 ..........1 ..........2 109.4
115 U18313-2 Universal Tie Rod ...........................................................1 ..........1 ..........2 176.53
(Note: When AN677A-3375 tie rod is used on the
aircraft, there must be a ⁄16” diameter hole drilled
7
in No. 18371 lug of the lower landing gear leg to
accommodate AN397-25 clevis pin.)

108A 18381-1 & -2 ALTERNATE TIE ROD ASSEMBLY – LH/RH ...........1 ..........1 ..........2 NM!
108A AN676AC-3625 Tie Rod – AN676-A-3625 ..............................................1 ..........1 ..........2 284.96
109A AN315-6 Nut ..................................................................................1 ..........1 ..........2 0.34
110A AN315-6L Nut ..................................................................................1 ..........1 ..........2 0.9
111A AN396-21 Clevis Pin ........................................................................2 ..........2 ..........4 1.63
112A MS24665-283 Cotter Pin – AN380-3-3 ..................................................2 ..........2 ..........4 0.04
113A AN665-80L Clevis Terminal ...............................................................1 ..........1 ..........2 61.08
114A AN665-80R Clevis Terminal ...............................................................1 ..........1 ..........2 73.86
115A -18391 Tie Rod Universal ...........................................................1 ..........1 ..........2 NM!
E.O. 640-2 Bushing ...........................................................................1 ..........1 ..........2 NM!
(Note: When AN676AC-3625 tie rod is used on
the aircraft, there must be a ⅜” diameter hole
drilled in No. 18371 lug of the lower leg. If a ⁄16”
7
hole is already in the lug, a bushing E. O. 640-2 is
required to accommodate AN396-21 clevis pin.)
108B U28367 ALTERNATE TIE ROD – LH/RH .................................1 ..........1 ..........2 NM!
109B AN6-11 Bolt .................................................................................1 ..........1 ..........2 1.9
110B NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
111B MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
112B NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
113B MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
114B U18313-2 Universal Tie Rod ...........................................................1 ..........1 ..........2 176.53
116 AN6-22 Bolt .................................................................................1 ..........1 ..........2 1.14
117 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
118 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
119 AN6-23 Bolt ...........................................................................................................1 1
120 NAS1149F0663P Washer – AN960-616 ................................................................................2 0.11
121 AN310-6 Nut ............................................................................................................1 1.8
122 MS24665-283 Cotter Pin – AN380-3-3 ............................................................................1 0.04
123 U18380-3 Bushing – Landing Gear – RH ....................................................2 ..........2 16.54
124 .040 Brass Safety Wire .............................................................................1 x
125 U48333 Jack Strut – RH ............................................................................1 ..........1 778.91
126 U58383 Lower Leg – LH .............................................................1 .......................1 1212.4
127 U18324 Spacer (Goodyear wheel only) .......................................1 ..........1 ..........2 61.84
1 set Landing Gear Bolts, Complete .................................................................1 x
1 set Landing Gear Fairing Bolts and Nuts .......................................................1 x
1 pt. Mobile Lube ‘90’ Oleo Fluid .................................................................................................1 NM!

13
