Page 18 - Luscombe Silvaire Model 8 Master Parts List

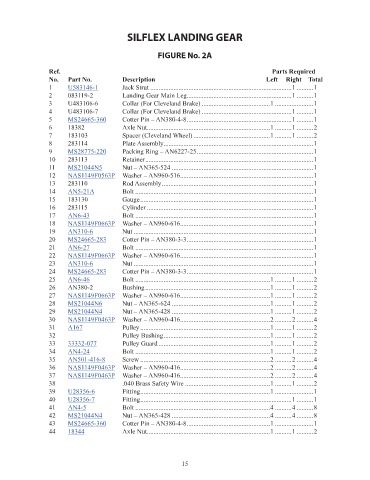

SILFLEX LANDING GEAR

FIGURE No. 2A

Ref. Parts Required
No. Part No. Description Left Right Total
1 U583146-1 Jack Strut .....................................................................................1 ..........1 738.85
2 083119-2 Landing Gear Main Leg ...............................................................1 ..........1 NM!
3 U483106-6 Collar (For Cleveland Brake) .........................................1 .......................1 NM!
4 U483106-7 Collar (For Cleveland Brake) ......................................................1 ..........1 NM!
5 MS24665-360 Cotter Pin – AN380-4-8 ...............................................................1 ..........1 0.13
6 18382 Axle Nut ..........................................................................1 ..........1 ..........2 NM!
7 183103 Spacer (Cleveland Wheel) ..............................................1 ..........1 ..........2 NM!
8 283114 Plate Assembly ..........................................................................................1 NM!
9 MS28775-220 Packing Ring – AN6227-25 ......................................................................1 0.78
10 283113 Retainer .....................................................................................................1 NM!
11 MS21044N5 Nut – AN365-524 .....................................................................................1 0.4
12 NAS1149F0563P Washer – AN960-516 ................................................................................1 0.08
13 283110 Rod Assembly ...........................................................................................1 NM!
14 AN5-21A Bolt ...........................................................................................................1 0.84
15 183130 Gauge ........................................................................................................1 NM!
16 283115 Cylinder ....................................................................................................1 NM!
17 AN6-43 Bolt ...........................................................................................................1 5.96
18 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
19 AN310-6 Nut ............................................................................................................1 1.8
20 MS24665-283 Cotter Pin – AN380-3-3 ............................................................................1 0.04
21 AN6-27 Bolt ...........................................................................................................1 1.46
22 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
23 AN310-6 Nut ............................................................................................................1 1.8
24 MS24665-283 Cotter Pin – AN380-3-3 ............................................................................1 0.04
25 AN6-46 Bolt .................................................................................1 ..........1 ..........2 6.2
26 AN380-2 Bushing ...........................................................................1 ..........1 ..........2 NM!
27 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
28 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
29 MS21044N4 Nut – AN365-428 ...........................................................1 ..........1 ..........2 0.3
30 NAS1149F0463P Washer – AN960-416 ......................................................2 ..........2 ..........4 0.06
31 A167 Pulley ..............................................................................1 ..........1 ..........2 27.37
32 Pulley Bushing ................................................................1 ..........1 ..........2 X
33 33332-077 Pulley Guard ...................................................................1 ..........1 ..........2 1.49
34 AN4-24 Bolt .................................................................................1 ..........1 ..........2 0.88
35 AN501-416-8 Screw ..............................................................................2 ..........2 ..........4 1.08
36 NAS1149F0463P Washer – AN960-416 ......................................................2 ..........2 ..........4 0.06
37 NAS1149F0463P Washer – AN960-416 ......................................................2 ..........2 ..........4 0.06
38 .040 Brass Safety Wire ...................................................1 ..........1 ..........2 X
39 U28356-6 Fitting ..............................................................................1 .......................1 191.59
40 U28356-7 Fitting ...........................................................................................1 ..........1 191.59
41 AN4-5 Bolt .................................................................................4 ..........4 ..........8 1.08
42 MS21044N4 Nut – AN365-428 ...........................................................4 ..........4 ..........8 0.3
43 MS24665-360 Cotter Pin – AN380-4-8 ..................................................1 .......................1 0.13
44 18344 Axle Nut ..........................................................................1 ..........1 ..........2 8.37

15
