Page 22 - Luscombe Silvaire Model 8 Master Parts List

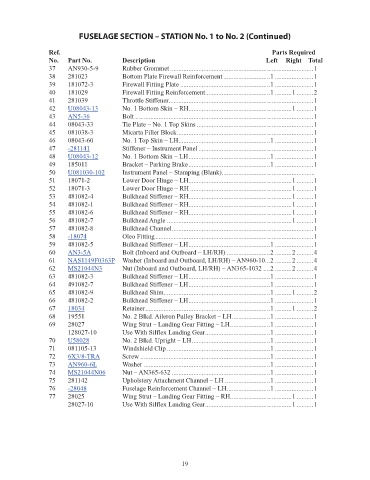

FUSELAGE SECTION – STATION No. 1 to No. 2 (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
37 AN930-5-9 Rubber Grommet ......................................................................................1 NM!
38 281023 Bottom Plate Firewall Reinforcement ............................1 .......................1 NM!
39 181072-3 Firewall Fitting Plate ......................................................1 .......................1 NM!
40 181029 Firewall Fitting Reinforcement .......................................1 ..........1 ..........2 NM!
41 281039 Throttle Stiffener .......................................................................................1 NM!
42 U08043-13 No. 1 Bottom Skin – RH ..............................................................1 ..........1 678.42
43 AN5-36 Bolt ...........................................................................................................1 3.2
44 08043-33 Tie Plate – No. 1 Top Skins ......................................................................1 NM!
45 081038-3 Micarta Filler Block ..................................................................................1 NM!
46 08043-60 No. 1 Top Skin – LH .......................................................1 .......................1 NM!
47 -281141 Stiffener – Instrument Panel .....................................................................1 47.07
48 U08043-12 No. 1 Bottom Skin – LH .................................................1 .......................1 678.42
49 185011 Bracket – Parking Brake .................................................1 .......................1 NM!
50 U081030-102 Instrument Panel – Stamping (Blank) ........................................................ 605.26
51 18071-2 Lower Door Hinge – LH ..............................................................1 ..........1 NM!
52 18071-3 Lower Door Hinge – RH .............................................................1 ..........1 NM!
53 481082-4 Bulkhead Stiffener – RH ..............................................................1 ..........1 NM!
54 481082-1 Bulkhead Stiffener – RH ..............................................................1 ..........1 NM!
55 481082-6 Bulkhead Stiffener – RH ..............................................................1 ..........1 NM!
56 481082-7 Bulkhead Angle ...........................................................................1 ..........1 NM!
57 481082-8 Bulkhead Channel .....................................................................................1 NM!
58 -18074 Oleo Fitting ...............................................................................................1 152.78
59 481082-5 Bulkhead Stiffener – LH .................................................1 .......................1 NM!
60 AN3-5A Bolt (Inboard and Outboard – LH/RH) ..........................2 ..........2 ..........4 0.16
61 NAS1149F0363P Washer (Inboard and Outboard, LH/RH) – AN960-10 ...2 ..........2 ..........4 0.04
62 MS21044N3 Nut (Inboard and Outboard, LH/RH) – AN365-1032 ....2 ..........2 ..........4 0.24
63 481082-3 Bulkhead Stiffener – LH .................................................1 .......................1 NM!
64 491082-7 Bulkhead Stiffener – LH .................................................1 .......................1 NM!
65 481082-9 Bulkhead Shim ................................................................1 ..........1 ..........2 NM!
66 481082-2 Bulkhead Stiffener – LH .................................................1 .......................1 NM!
67 18034 Retainer ...........................................................................1 ..........1 ..........2 21.72
68 19551 No. 2 Blkd. Aileron Pulley Bracket – LH .......................1 .......................1 NM!
69 28027 Wing Strut – Landing Gear Fitting – LH ........................1 .......................1 NM!
128027-10 Use With Silflex Landing Gear .......................................1 .......................1 NM!
70 U58028 No. 2 Blkd. Upright – LH ...............................................1 .......................1 370.14
71 081105-13 Windshield Clip ..............................................................1 .......................1 NM!
72 6X3/8-TRA Screw ..............................................................................1 .......................1 0.06
73 AN960-6L Washer ............................................................................1 .......................1 0.03
74 MS21044N06 Nut – AN365-632 ...........................................................1 .......................1 0.32
75 281142 Upholstery Attachment Channel – LH ...........................1 .......................1 NM!
76 -28048 Fuselage Reinforcement Channel – LH ..........................1 .......................1 118.03
77 28025 Wing Strut – Landing Gear Fitting – RH.....................................1 ..........1 NM!
28027-10 Use With Silflex Landing Gear ....................................................1 ..........1 NM!

19
