Page 26 - Luscombe Silvaire Model 8 Master Parts List

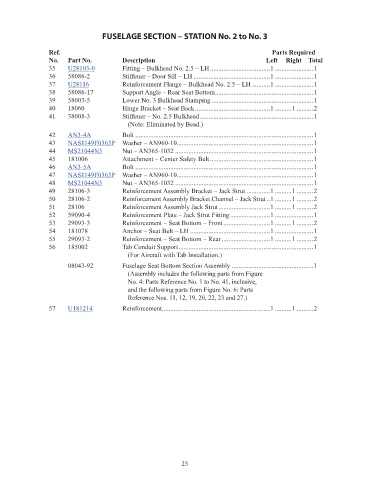

FUSELAGE SECTION – STATION No. 2 to No. 3

Ref. Parts Required
No. Part No. Description Left Right Total
35 U28103-0 Fitting – Bulkhead No. 2.5 – LH ....................................1 .......................1 75.53
36 58086-2 Stiffener – Door Sill – LH ..............................................1 .......................1 NM!
37 U28116 Reinforcement Flange – Bulkhead No. 2.5 – LH ...........1 .......................1 43.71
38 58086-17 Support Angle – Rear Seat Bottom ...........................................................1 NM!
39 58003-5 Lower No. 3 Bulkhead Stamping .............................................................1 NM!
40 18060 Hinge Bracket – Seat Back .............................................1 ..........1 ..........2 NM!
41 38008-3 Stiffener – No. 2.5 Bulkhead ....................................................................1 NM!
(Note: Eliminated by Bead.)
42 AN3-4A Bolt ...........................................................................................................1 0.2
43 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
44 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
45 181006 Attachment – Center Safety Belt ..............................................................1 NM!
46 AN3-5A Bolt ...........................................................................................................1 0.16
47 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
48 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
49 28106-3 Reinforcement Assembly Bracket – Jack Strut ..............1 ..........1 ..........2 NM!
50 28106-2 Reinforcement Assembly Bracket Channel – Jack Strut ..1 ..........1 ..........2 NM!
51 28106 Reinforcement Assembly Jack Strut ...............................1 ..........1 ..........2 NM!
52 59090-4 Reinforcement Plate – Jack Strut Fitting ........................1 .......................1 NM!
53 29093-3 Reinforcement – Seat Bottom – Front ............................1 ..........1 ..........2 NM!
54 181078 Anchor – Seat Belt – LH ................................................1 .......................1 NM!
55 29093-2 Reinforcement – Seat Bottom – Rear .............................1 ..........1 ..........2 NM!
56 185002 Tab Conduit Support .................................................................................1 NM!
(For Aircraft with Tab Installation.)
08043-92 Fuselage Seat Bottom Section Assembly .................................................1 NM!
(Assembly includes the following parts from Figure
No. 4: Parts Reference No. 1 to No. 41, inclusive,
and the following parts from Figure No. 6: Parts
Reference Nos. 11, 12, 19, 20, 22, 23 and 27.)

57 U181214 Reinforcement. ................................................................1 ..........1 ..........2 9.25

23
