Page 29 - Luscombe Silvaire Model 8 Master Parts List

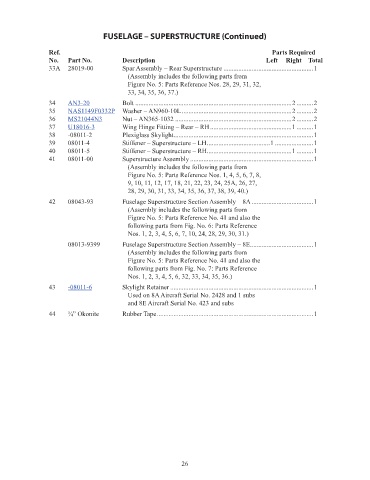

FUSELAGE – SUPERSTRUCTURE (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
33A 28019-00 Spar Assembly – Rear Superstructure ......................................................1 NM!
(Assembly includes the following parts from
Figure No. 5: Parts Reference Nos. 28, 29, 31, 32,
33, 34, 35, 36, 37.)
34 AN3-20 Bolt ..............................................................................................2 ..........2 2.31
35 NAS1149F0332P Washer – AN960-10L ..................................................................2 ..........2 0.04
36 MS21044N3 Nut – AN365-1032 ......................................................................2 ..........2 0.24
37 U18016-3 Wing Hinge Fitting – Rear – RH .................................................1 ..........1 113.34
38 -08011-2 Plexiglass Skylight ....................................................................................1 NM!
39 08011-4 Stiffener – Superstructure – LH ......................................1 .......................1 NM!
40 08011-5 Stiffener – Superstructure – RH ...................................................1 ..........1 NM!
41 08011-00 Superstructure Assembly ..........................................................................1 NM!
(Assembly includes the following parts from
Figure No. 5: Parts Reference Nos. 1, 4, 5, 6, 7, 8,
9, 10, 11, 12, 17, 18, 21, 22, 23, 24, 25A, 26, 27,
28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40.)

42 08043-93 Fuselage Superstructure Section Assembly – 8A .....................................1 NM!
(Assembly includes the following parts from
Figure No. 5: Parts Reference No. 41 and also the
following parts from Fig. No. 6: Parts Reference
Nos. 1, 2, 3, 4, 5, 6, 7, 10, 24, 28, 29, 30, 31.)
08013-9399 Fuselage Superstructure Section Assembly – 8E ......................................1 NM!
(Assembly includes the following parts from
Figure No. 5: Parts Reference No. 41 and also the
following parts from Fig. No. 7: Parts Reference
Nos. 1, 2, 3, 4, 5, 6, 32, 33, 34, 35, 36.)
43 -08011-6 Skylight Retainer ......................................................................................1 206.84
Used on 8A Aircraft Serial No. 2428 and 1 subs
and 8E Aircraft Serial No. 423 and subs
44 ¾” Okonite Rubber Tape ..............................................................................................1 NM!

26
