Page 33 - Luscombe Silvaire Model 8 Master Parts List

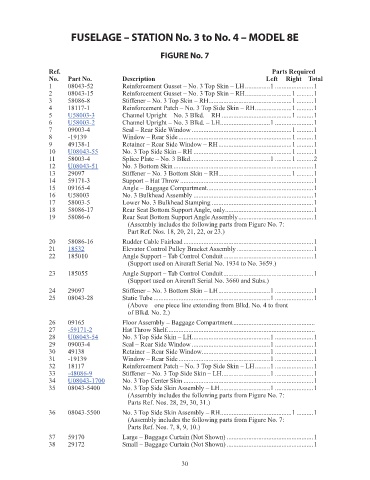

FUSELAGE – STATION No. 3 to No. 4 – MODEL 8E

FIGURE No. 7

Ref. Parts Required
No. Part No. Description Left Right Total
1 08043-52 Reinforcement Gusset – No. 3 Top Skin – LH ...............1 .......................1 NM!
2 08043-15 Reinforcement Gusset – No. 3 Top Skin – RH ............................1 ..........1 NM!
3 58086-8 Stiffener – No. 3 Top Skin – RH ..................................................1 ..........1 NM!
4 18117-1 Reinforcement Patch – No. 3 Top Side Skin – RH ......................1 ..........1 NM!
5 U58003-3 Channel Upright – No. 3 Blkd. – RH ..........................................1 ..........1 134.84
6 U58003-2 Channel Upright – No. 3 Blkd. – LH ..............................1 .......................1 134.84
7 09003-4 Seal – Rear Side Window ............................................................1 ..........1 NM!
8 -19139 Window – Rear Side ....................................................................1 ..........1 NM!
9 49138-1 Retainer – Rear Side Window – RH ............................................1 ..........1 NM!
10 U08043-55 No. 3 Top Side Skin – RH ...........................................................1 ..........1 1674.86
11 58003-4 Splice Plate – No. 3 Blkd. ...............................................1 ..........1 ..........2 NM!
12 U08043-51 No. 3 Bottom Skin ....................................................................................1 612.15
13 29097 Stiffener – No. 3 Bottom Skin – RH ............................................1 ..........1 NM!
14 59171-3 Support – Hat Throw ................................................................................1 NM!
15 09165-4 Angle – Baggage Compartment ................................................................1 NM!
16 U58003 No. 3 Bulkhead Assembly ........................................................................1 NM!
17 58003-5 Lower No. 3 Bulkhead Stamping .............................................................1 NM!
18 58086-17 Rear Seat Bottom Support Angle, only .....................................................1 NM!
19 58086-6 Rear Seat Bottom Support Angle Assembly .............................................1 NM!
(Assembly includes the following parts from Figure No. 7:
Part Ref. Nos. 18, 20, 21, 22, or 23.)
20 58086-16 Rudder Cable Fairlead ..............................................................................1 NM!
21 18532 Elevator Control Pulley Bracket Assembly ..............................................1 22.82
22 185010 Angle Support – Tab Control Conduit ......................................................1 NM!
(Support used on Aircraft Serial No. 1934 to No. 3659.)
23 185055 Angle Support – Tab Control Conduit ......................................................1 NM!
(Support used on Aircraft Serial No. 3660 and Subs.)
24 29097 Stiffener – No. 3 Bottom Skin – LH ...............................1 .......................1 NM!
25 08043-28 Static Tube ......................................................................1 .......................1 NM!
(Above – one piece line extending from Blkd. No. 4 to front
of Blkd. No. 2.)
26 09165 Floor Assembly – Baggage Compartment ................................................. NM!
27 -59171-2 Hat Throw Shelf ......................................................................................... 325.58
28 U08043-54 No. 3 Top Side Skin – LH ...............................................1 .......................1 1674.86
29 09003-4 Seal – Rear Side Window ...............................................1 .......................1 NM!
30 49138 Retainer – Rear Side Window .........................................1 .......................1 NM!
31 -19139 Window – Rear Side .......................................................1 .......................1 NM!
32 18117 Reinforcement Patch – No. 3 Top Side Skin – LH .........1 .......................1 NM!
33 -48086-9 Stiffener – No. 3 Top Side Skin – LH .............................1 .......................1 21.19
34 U08043-1700 No. 3 Top Center Skin ..............................................................................1 117.76
35 08043-5400 No. 3 Top Side Skin Assembly – LH ..............................1 .......................1 NM!
(Assembly includes the following parts from Figure No. 7:
Parts Ref. Nos. 28, 29, 30, 31.)
36 08043-5500 No. 3 Top Side Skin Assembly – RH ...........................................1 ..........1 NM!
(Assembly includes the following parts from Figure No. 7:
Parts Ref. Nos. 7, 8, 9, 10.)
37 59170 Large – Baggage Curtain (Not Shown) ....................................................1 NM!
38 29172 Small – Baggage Curtain (Not Shown) ....................................................1 NM!

30
