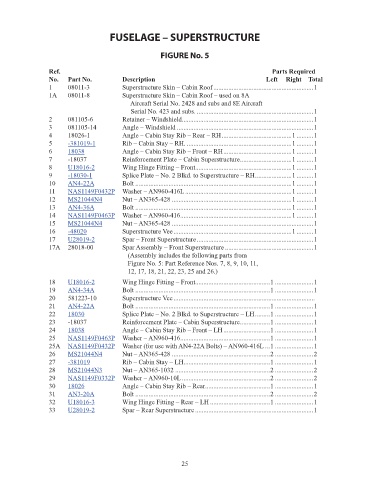

FUSELAGE – SUPERSTRUCTURE

FIGURE No. 5

Ref. Parts Required
No. Part No. Description Left Right Total
1 08011-3 Superstructure Skin – Cabin Roof ............................................................1 NM!
1A 08011-8 Superstructure Skin – Cabin Roof – used on 8A NM!
Aircraft Serial No. 2428 and subs and 8E Aircraft
Serial No. 423 and subs. ......................................................................1 N/A
2 081105-6 Retainer – Windshield ...............................................................................1 NM!
3 081105-14 Angle – Windshield ..................................................................................1 NM!
4 18026-1 Angle – Cabin Stay Rib – Rear – RH ..........................................1 ..........1 NM!
5 -381019-1 Rib – Cabin Stay – RH. ...............................................................1 ..........1 154.11
6 18038 Angle – Cabin Stay Rib – Front – RH .........................................1 ..........1 34.62
7 -18037 Reinforcement Plate – Cabin Superstructure ...............................1 ..........1 NM!
8 U18016-2 Wing Hinge Fitting – Front..........................................................1 ..........1 113.34
9 -18030-1 Splice Plate – No. 2 Blkd. to Superstructure – RH ......................1 ..........1 55.72
10 AN4-22A Bolt ..............................................................................................1 ..........1 0.48
11 NAS1149F0432P Washer – AN960-416L ................................................................1 ..........1 0.04
12 MS21044N4 Nut – AN365-428 ........................................................................1 ..........1 0.3
13 AN4-36A Bolt ..............................................................................................1 ..........1 0.88
14 NAS1149F0463P Washer – AN960-416 ...................................................................1 ..........1 0.06
15 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
16 -48020 Superstructure Vee .......................................................................1 ..........1 23.1
17 U28019-2 Spar – Front Superstructure ......................................................................1 516.45
17A 28018-00 Spar Assembly – Front Superstructure .....................................................1 NM!
(Assembly includes the following parts from
Figure No. 5: Part Reference Nos. 7, 8, 9, 10, 11,
12, 17, 18, 21, 22, 23, 25 and 26.)
18 U18016-2 Wing Hinge Fitting – Front.............................................1 .......................1 113.34
19 AN4-34A Bolt .................................................................................1 .......................1 0.83
20 581223-10 Superstructure Vee ..................................................................................... NM!
21 AN4-22A Bolt .................................................................................1 .......................1 0.48
22 18030 Splice Plate – No. 2 Blkd. to Superstructure – LH .........1 .......................1 21.65
23 -18037 Reinforcement Plate – Cabin Superstructure ..................1 .......................1 NM!
24 18038 Angle – Cabin Stay Rib – Front – LH ............................1 .......................1 34.62
25 NAS1149F0463P Washer – AN960-416 ......................................................1 .......................1 0.06
25A NAS1149F0432P Washer (for use with AN4-22A Bolts) – AN960-416L ...1 .......................1 0.04
26 MS21044N4 Nut – AN365-428 ...........................................................2 .......................2 0.3
27 -381019 Rib – Cabin Stay – LH ....................................................1 .......................1 154.11
28 MS21044N3 Nut – AN365-1032 .........................................................2 .......................2 0.24
29 NAS1149F0332P Washer – AN960-10L .....................................................2 .......................2 0.04
30 18026 Angle – Cabin Stay Rib – Rear .......................................1 .......................1 21.65
31 AN3-20A Bolt .................................................................................2 .......................2 0.22
32 U18016-3 Wing Hinge Fitting – Rear – LH ....................................1 .......................1 113.34
33 U28019-2 Spar – Rear Superstructure .......................................................................1 516.45
