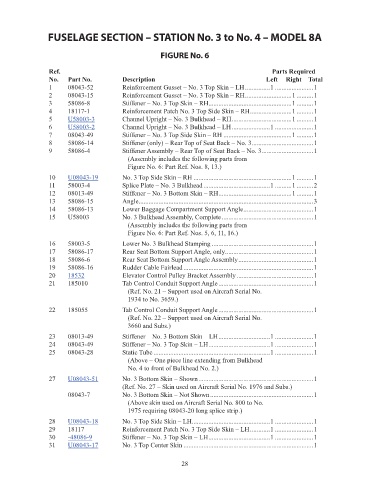

FUSELAGE SECTION – STATION No. 3 to No. 4 – MODEL 8A

FIGURE No. 6

Ref. Parts Required
No. Part No. Description Left Right Total
1 08043-52 Reinforcement Gusset – No. 3 Top Skin – LH ...............1 .......................1 NM!
2 08043-15 Reinforcement Gusset – No. 3 Top Skin – RH ............................1 ..........1 NM!
3 58086-8 Stiffener – No. 3 Top Skin – RH ..................................................1 ..........1 NM!
4 18117-1 Reinforcement Patch No. 3 Top Side Skin – RH .........................1 ..........1 NM!
5 U58003-3 Channel Upright – No. 3 Bulkhead – RH ....................................1 ..........1 134.84
6 U58003-2 Channel Upright – No. 3 Bulkhead – LH .......................1 .......................1 134.84
7 08043-49 Stiffener – No. 3 Top Side Skin – RH .........................................1 ..........1 NM!
8 58086-14 Stiffener (only) – Rear Top of Seat Back – No. 3 .....................................1 NM!
9 58086-4 Stiffener Assembly – Rear Top of Seat Back – No. 3 ...............................1 NM!
(Assembly includes the following parts from
Figure No. 6: Part Ref. Nos. 8, 13.)

10 U08043-19 No. 3 Top Side Skin – RH ...........................................................1 ..........1 1509.04
11 58003-4 Splice Plate – No. 3 Bulkhead ........................................1 ..........1 ..........2 NM!
12 08013-49 Stiffener – No. 3 Bottom Skin – RH ............................................1 ..........1 NM!
13 58086-15 Angle .........................................................................................................3 NM!
14 58086-13 Lower Baggage Compartment Support Angle ..........................................1 NM!
15 U58003 No. 3 Bulkhead Assembly, Complete .......................................................1 NM!
(Assembly includes the following parts from
Figure No. 6: Part Ref. Nos. 5, 6, 11, 16.)
16 58003-5 Lower No. 3 Bulkhead Stamping .............................................................1 NM!
17 58086-17 Rear Seat Bottom Support Angle, only .....................................................1 NM!
18 58086-6 Rear Seat Bottom Support Angle Assembly .............................................1 NM!
19 58086-16 Rudder Cable Fairlead ..............................................................................1 NM!
20 18532 Elevator Control Pulley Bracket Assembly ..............................................1 22.82
21 185010 Tab Control Conduit Support Angle .........................................................1 NM!
(Ref. No. 21 – Support used on Aircraft Serial No.
1934 to No. 3659.)
22 185055 Tab Control Conduit Support Angle .........................................................1 NM!
(Ref. No. 22 – Support used on Aircraft Serial No.
3660 and Subs.)
23 08013-49 Stiffener – No. 3 Bottom Skin – LH ...............................1 .......................1 NM!
24 08043-49 Stiffener – No. 3 Top Skin – LH .....................................1 .......................1 NM!
25 08043-28 Static Tube ......................................................................1 .......................1 NM!
(Above – One piece line extending from Bulkhead
No. 4 to front of Bulkhead No. 2.)
27 U08043-51 No. 3 Bottom Skin – Shown .....................................................................1 612.15
(Ref. No. 27 – Skin used on Aircraft Serial No. 1976 and Subs.)
08043-7 No. 3 Bottom Skin – Not Shown ..............................................................1 NM!
(Above skin used on Aircraft Serial No. 800 to No.
1975 requiring 08043-20 long splice strip.)
28 U08043-18 No. 3 Top Side Skin – LH ...............................................1 .......................1 1509.04
29 18117 Reinforcement Patch No. 3 Top Side Skin – LH ............1 .......................1 NM!
30 -48086-9 Stiffener – No. 3 Top Skin – LH .....................................1 .......................1 21.19
31 U08043-17 No. 3 Top Center Skin ..............................................................................1 133.29
