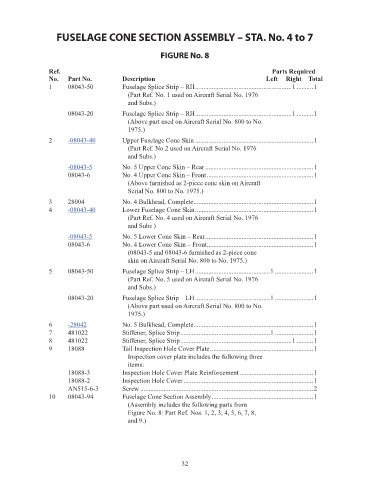

FUSELAGE CONE SECTION ASSEMBLY – STA. No. 4 to 7

FIGURE No. 8

Ref. Parts Required
No. Part No. Description Left Right Total
1 08043-50 Fuselage Splice Strip – RH ..........................................................1 ..........1 NM!
(Part Ref. No. 1 used on Aircraft Serial No. 1976
and Subs.)
08043-20 Fuselage Splice Strip – RH ..........................................................1 ..........1 NM!
(Above part used on Aircraft Serial No. 800 to No.
1975.)
2 -08043-40 Upper Fuselage Cone Skin .......................................................................1 1024
(Part Ref. No 2 used on Aircraft Serial No. 1976
and Subs.)

-08043-5 No. 5 Upper Cone Skin – Rear .................................................................1 288.79
08043-6 No. 4 Upper Cone Skin – Front ................................................................1 NM!
(Above furnished as 2-piece cone skin on Aircraft
Serial No. 800 to No. 1975.)

3 28004 No. 4 Bulkhead, Complete ........................................................................1 NM!
4 -08043-40 Lower Fuselage Cone Skin .......................................................................1 1024
(Part Ref. No. 4 used on Aircraft Serial No. 1976
and Subs )
-08043-5 No. 5 Lower Cone Skin – Rear .................................................................1 288.79
08043-6 No. 4 Lower Cone Skin – Front ................................................................1 NM!
(08043-5 and 08043-6 furnished as 2-piece cone
skin on Aircraft Serial No. 800 to No. 1975.)
5 08043-50 Fuselage Splice Strip – LH .............................................1 .......................1 NM!
(Part Ref. No. 5 used on Aircraft Serial No. 1976
and Subs.)
08043-20 Fuselage Splice Strip – LH .............................................1 .......................1 NM!
(Above part used on Aircraft Serial No. 800 to No.
1975.)
6 -28042 No. 5 Bulkhead, Complete ........................................................................1 243.92
7 481022 Stiffener, Splice Strip ......................................................1 .......................1 NM!
8 481022 Stiffener, Splice Strip ...................................................................1 ..........1 NM!
9 18088 Tail Inspection Hole Cover Plate ..............................................................1 NM!
Inspection cover plate includes the following three
items:
18088-3 Inspection Hole Cover Plate Reinforcement ............................................1 NM!
18088-2 Inspection Hole Cover ..............................................................................1 NM!
AN515-6-3 Screw ........................................................................................................2 NM!
10 08043-94 Fuselage Cone Section Assembly .............................................................1 NM!
(Assembly includes the following parts from
Figure No. 8: Part Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8,
and 9.)

32
