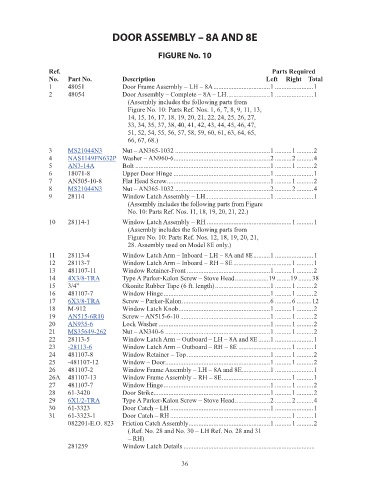

Page 39 - Luscombe Silvaire Model 8 Master Parts List

DOOR ASSEMBLY – 8A AND 8E

FIGURE No. 10

Ref. Parts Required
No. Part No. Description Left Right Total
1 48051 Door Frame Assembly – LH – 8A ..................................1 .......................1 NM!
2 48054 Door Assembly – Complete – 8A – LH ..........................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 1, 6, 7, 8, 9, 11, 13,
14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25, 26, 27,
33, 34, 35, 37, 38, 40, 41, 42, 43, 44, 45, 46, 47,
51, 52, 54, 55, 56, 57, 58, 59, 60, 61, 63, 64, 65,
66, 67, 68.)
3 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
4 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
5 AN3-14A Bolt .................................................................................1 ..........1 ..........2 0.18
6 18071-8 Upper Door Hinge ..........................................................1 .......................1 NM!
7 AN505-10-8 Flat Head Screw ..............................................................1 ..........1 ..........2 NM!
8 MS21044N3 Nut – AN365-1032 .........................................................2 ..........2 ..........4 0.24
9 28114 Window Latch Assembly – LH.......................................1 .......................1 NM!
(Assembly includes the following parts from Figure
No. 10: Parts Ref. Nos. 11, 18, 19, 20, 21, 22.)
10 28114-1 Window Latch Assembly – RH ...................................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 12, 18, 19, 20, 21,
28. Assembly used on Model 8E only.)
11 28113-4 Window Latch Arm – Inboard – LH – 8A and 8E ..........1 .......................1 NM!
12 28113-7 Window Latch Arm – Inboard – RH – 8E ...................................1 ..........1 NM!
13 481107-11 Window Retainer-Front ..................................................1 ..........1 ..........2 NM!
14 4X3/8-TRA Type A Parker-Kalon Screw – Stove Head ....................19 ........19 ........38 0.1
15 3/4” Okonite Rubber Tape (6 ft. length) .................................1 ..........1 ..........2 NM!
16 481107-7 Window Hinge ................................................................1 ..........1 ..........2 NM!
17 6X3/8-TRA Screw – Parker-Kalon .....................................................6 ..........6 .........12 0.06
18 M-912 Window Latch Knob .......................................................1 ..........1 ..........2 NM!
19 AN515-6R10 Screw – AN515-6-10 ......................................................1 ..........1 ..........2 0.25
20 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
21 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
22 28113-5 Window Latch Arm – Outboard – LH – 8A and 8E .......1 .......................1 NM!
23 -28113-6 Window Latch Arm – Outboard – RH – 8E ................................1 ..........1 101.38
24 481107-8 Window Retainer – Top ..................................................1 ..........1 ..........2 NM!
25 -481107-12 Window – Door...............................................................1 ..........1 ..........2 NM!
26 481107-2 Window Frame Assembly – LH – 8A and 8E.................1 .......................1 NM!
26A 481107-13 Window Frame Assembly – RH – 8E ..........................................1 ..........1 NM!
27 481107-7 Window Hinge ................................................................1 ..........1 ..........2 NM!
28 61-3420 Door Strike ......................................................................1 ..........1 ..........2 NM!
29 6X1/2-TRA Type A Parker-Kalon Screw – Stove Head .....................2 ..........2 ..........4 0.04
30 61-3323 Door Catch – LH ............................................................1 .......................1 NM!
31 61-3323-1 Door Catch – RH .........................................................................1 ..........1 NM!
082201-E.O. 823 Friction Catch Assembly .................................................1 ..........1 ..........2 NM!
(.Ref. No. 28 and No. 30 – LH Ref. No. 28 and 31
– RH)
281259 Window Latch Details ............................................................................... NM!
