Page 42 - Luscombe Silvaire Model 8 Master Parts List
P. 42

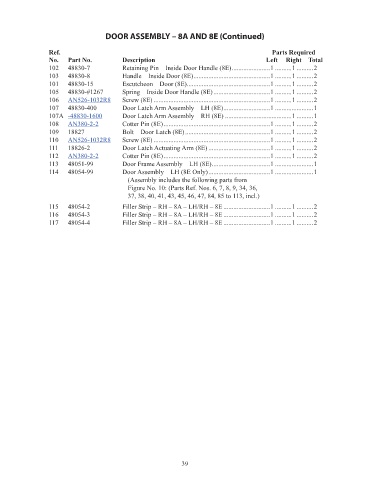

DOOR ASSEMBLY – 8A AND 8E (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
102 48830-7 Retaining Pin – Inside Door Handle (8E) .......................1 ..........1 ..........2 NM!
103 48830-8 Handle – Inside Door (8E) ..............................................1 ..........1 ..........2 NM!
101 48830-15 Escutcheon – Door (8E) ..................................................1 ..........1 ..........2 NM!
105 48830-#1267 Spring – Inside Door Handle (8E) ..................................1 ..........1 ..........2 NM!
106 AN526-1032R8 Screw (8E) ......................................................................1 ..........1 ..........2 0.18
107 48830-400 Door Latch Arm Assembly – LH (8E) ............................1 .......................1 NM!
107A -48830-1600 Door Latch Arm Assembly – RH (8E) ........................................1 ..........1 66.65
108 AN380-2-2 Cotter Pin (8E) ................................................................1 ..........1 ..........2 0.04
109 18827 Bolt – Door Latch (8E) ...................................................1 ..........1 ..........2 NM!
110 AN526-1032R8 Screw (8E) ......................................................................1 ..........1 ..........2 0.18
111 18826-2 Door Latch Actuating Arm (8E) .....................................1 ..........1 ..........2 NM!
112 AN380-2-2 Cotter Pin (8E) ................................................................1 ..........1 ..........2 0.04
113 48051-99 Door Frame Assembly – LH (8E) ...................................1 .......................1 NM!
114 48054-99 Door Assembly – LH (8E Only) .....................................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 10: (Parts Ref. Nos. 6, 7, 8, 9, 34, 36,
37, 38, 40, 41, 43, 45, 46, 47, 84, 85 to 113, incl.)
115 48054-2 Filler Strip – RH – 8A – LH/RH – 8E ............................1 ..........1 ..........2 NM!
116 48054-3 Filler Strip – RH – 8A – LH/RH – 8E ............................1 ..........1 ..........2 NM!
117 48054-4 Filler Strip – RH – 8A – LH/RH – 8E ............................1 ..........1 ..........2 NM!
39
