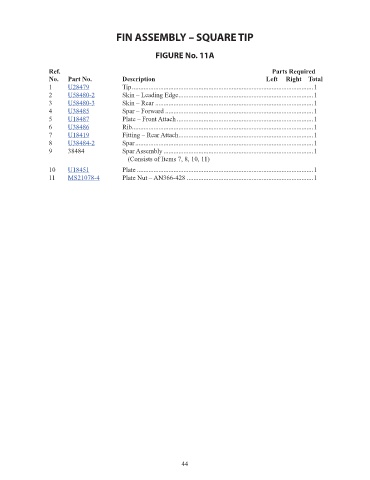

FIN ASSEMBLY – SQUARE TIP
FIGURE No. 11A
Ref. Parts Required
No. Part No. Description Left Right Total
1 U28479 Tip .............................................................................................................1 166
2 U58480-2 Skin – Leading Edge .................................................................................1 258.07
3 U58480-3 Skin – Rear ...............................................................................................1 253.21
4 U38485 Spar – Forward .........................................................................................1 68.24
5 U18487 Plate – Front Attach ..................................................................................1 137.92
6 U38486 Rib .............................................................................................................1 64.92
7 U18419 Fitting – Rear Attach .................................................................................1 540.34
8 U38484-2 Spar ...........................................................................................................1 104.36
9 38484 Spar Assembly ..........................................................................................1 NM!
(Consists of Items 7, 8, 10, 11)
10 U18451 Plate ..........................................................................................................1 31.72
11 MS21078-4 Plate Nut – AN366-428 ............................................................................1 17.4
44
