Page 51 - Luscombe Silvaire Model 8 Master Parts List

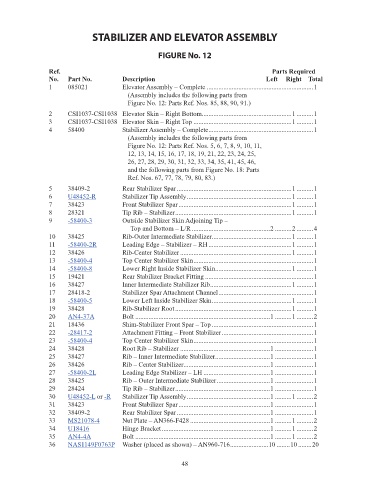

STABILIZER AND ELEVATOR ASSEMBLY

FIGURE No. 12

Ref. Parts Required
No. Part No. Description Left Right Total
1 085021 Elevator Assembly – Complete ................................................................1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 85, 88, 90, 91.)
2 CSI1037-CSI1038 Elevator Skin – Right Bottom ......................................................1 ..........1 NM!
3 CSI1037-CSI1038 Elevator Skin – Right Top ...........................................................1 ..........1 NM!
4 58400 Stabilizer Assembly – Complete ...............................................................1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 5, 6, 7, 8, 9, 10, 11,
12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 25,
26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 41, 45, 46,
and the following parts from Figure No. 18: Parts
Ref. Nos. 67, 77, 78, 79, 80, 83.)
5 38409-2 Rear Stabilizer Spar .....................................................................1 ..........1 NM!
6 U48452-R Stabilizer Tip Assembly ...............................................................1 ..........1 491.65
7 38423 Front Stabilizer Spar ....................................................................1 ..........1 NM!
8 28321 Tip Rib – Stabilizer ......................................................................1 ..........1 NM!
9 -58400-3 Outside Stabilizer Skin Adjoining Tip – 105.71
Top and Bottom – L/R ...............................................2 ..........2 ..........4
10 38425 Rib-Outer Intermediate Stabilizer ................................................1 ..........1 NM!
11 -58400-2R Leading Edge – Stabilizer – RH ..................................................1 ..........1 175.61
12 38426 Rib-Center Stabilizer ...................................................................1 ..........1 NM!
13 -58400-4 Top Center Stabilizer Skin ........................................................................1 105.71
14 -58400-8 Lower Right Inside Stabilizer Skin ..............................................1 ..........1 77.45
15 19421 Rear Stabilizer Bracket Fitting .................................................................1 NM!
16 38427 Inner Intermediate Stabilizer Rib .................................................1 ..........1 NM!
17 28418-2 Stabilizer Spar Attachment Channel .........................................................1 NM!
18 -58400-5 Lower Left Inside Stabilizer Skin ................................................1 ..........1 77.45
19 38428 Rib-Stabilizer Root ......................................................................1 ..........1 NM!
20 AN4-37A Bolt .................................................................................1 ..........1 ..........2 0.9
21 18436 Shim-Stabilizer Front Spar – Top .............................................................1 NM!
22 -28417-2 Attachment Fitting – Front Stabilizer .......................................................1 225.27
23 -58400-4 Top Center Stabilizer Skin ........................................................................1 105.71
24 38428 Root Rib – Stabilizer ......................................................1 .......................1 NM!
25 38427 Rib – Inner Intermediate Stabilizer .................................1 .......................1 NM!
26 38426 Rib – Center Stabilizer ....................................................1 .......................1 NM!
27 -58400-2L Leading Edge Stabilizer – LH ........................................1 .......................1 175.61
28 38425 Rib – Outer Intermediate Stabilizer ................................1 .......................1 NM!
29 28424 Tip Rib – Stabilizer .........................................................1 .......................1 NM!
30 U48452-L or -R Stabilizer Tip Assembly ..................................................1 ..........1 ..........2 491.65
31 38423 Front Stabilizer Spar .......................................................1 .......................1 NM!
32 38409-2 Rear Stabilizer Spar ........................................................1 .......................1 NM!
33 MS21078-4 Nut Plate – AN366-F428 ................................................1 ..........1 ..........2 17.4
34 U18416 Hinge Bracket .................................................................1 ..........1 ..........2 25.17
35 AN4-4A Bolt .................................................................................1 ..........1 ..........2 0.3
36 NAS1149F0763P Washer (placed as shown) – AN960-716 .......................10 ........10 ........20 0.17

48
