Page 55 - Luscombe Silvaire Model 8 Master Parts List

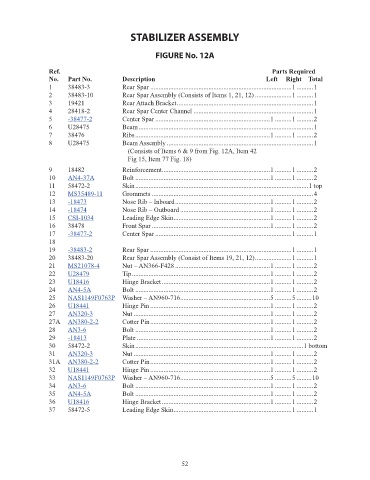

STABILIZER ASSEMBLY

FIGURE No. 12A

Ref. Parts Required
No. Part No. Description Left Right Total
1 38483-3 Rear Spar .....................................................................................1 ..........1 NM!
2 38483-10 Rear Spar Assembly (Consists of Items 1, 21, 12) ......................1 ..........1 NM!
3 19421 Rear Attach Bracket ..................................................................................1 NM!
4 28418-2 Rear Spar Center Channel ........................................................................1 NM!
5 -38477-2 Center Spar .....................................................................1 ..........1 ..........2 97
6 U28475 Beam .........................................................................................................1 NM!
7 38476 Ribs .................................................................................1 ..........1 ..........2 NM!
8 U28475 Beam Assembly ........................................................................................1 NM!
(Consists of Items 6 & 9 from Fig. 12A, Item 42
Fig 15, Item 77 Fig. 18)
9 18482 Reinforcement .................................................................1 ..........1 ..........2 NM!
10 AN4-37A Bolt .................................................................................1 ..........1 ..........2 0.9
11 58472-2 Skin ........................................................................................................1 top NM!
12 MS35489-11 Grommets .................................................................................................4 0.6
13 -18473 Nose Rib – Inboard .........................................................1 ..........1 ..........2 43.12
14 -18474 Nose Rib – Outboard ......................................................1 ..........1 ..........2 43.12
15 CSI-1034 Leading Edge Skin ..........................................................1 ..........1 ..........2 774.02
16 38478 Front Spar .......................................................................1 ..........1 ..........2 NM!
17 -38477-2 Center Spar ..................................................................................1 ..........1 97
18
19 -38483-2 Rear Spar .....................................................................................1 ..........1 358.87
20 38483-20 Rear Spar Assembly (Consist of Items 19, 21, 12) ......................1 ..........1 NM!
21 MS21078-4 Nut – AN366-F428 .........................................................1 ..........1 ..........2 17.4
22 U28479 Tip ...................................................................................1 ..........1 ..........2 166
23 U18416 Hinge Bracket .................................................................1 ..........1 ..........2 25.17
24 AN4-5A Bolt .................................................................................1 ..........1 ..........2 0.16
25 NAS1149F0763P Washer – AN960-716 ......................................................5 ..........5 .........10 0.17
26 U18441 Hinge Pin ........................................................................1 ..........1 ..........2 34.53
27 AN320-3 Nut ..................................................................................1 ..........1 ..........2 1
27A AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
28 AN3-6 Bolt .................................................................................1 ..........1 ..........2 0.52
29 -18413 Plate ................................................................................1 ..........1 ..........2 14.86
30 58472-2 Skin .....................................................................................................1 bottom NM!
31 AN320-3 Nut ..................................................................................1 ..........1 ..........2 1
31A AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
32 U18441 Hinge Pin ........................................................................1 ..........1 ..........2 34.53
33 NAS1149F0763P Washer – AN960-716 ......................................................5 ..........5 .........10 0.17
34 AN3-6 Bolt .................................................................................1 ..........1 ..........2 0.52
35 AN4-5A Bolt .................................................................................1 ..........1 ..........2 0.16
36 U18416 Hinge Bracket .................................................................1 ..........1 ..........2 25.17
37 58472-5 Leading Edge Skin .......................................................................1 ..........1 NM!

52
