Page 57 - Luscombe Silvaire Model 8 Master Parts List

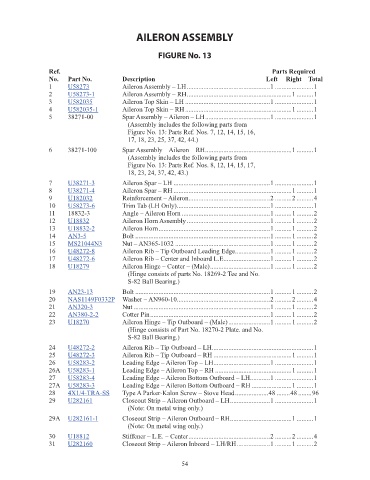

AILERON ASSEMBLY

FIGURE No. 13

Ref. Parts Required
No. Part No. Description Left Right Total
1 U58273 Aileron Assembly – LH ..................................................1 .......................1 3931.17
2 U58273-1 Aileron Assembly – RH ...............................................................1 ..........1 3931.17
3 U582035 Aileron Top Skin – LH ...................................................1 .......................1 333.89
4 U582035-1 Aileron Top Skin – RH ................................................................1 ..........1 333.89
5 38271-00 Spar Assembly – Aileron – LH .......................................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 13: Parts Ref. Nos. 7, 12, 14, 15, 16,
17, 18, 23, 25, 37, 42, 44.)
6 38271-100 Spar Assembly – Aileron – RH ....................................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 13: Parts Ref. Nos. 8, 12, 14, 15, 17,
18, 23, 24, 37, 42, 43.)
7 U38271-3 Aileron Spar – LH ..........................................................1 .......................1 157.43
8 U38271-4 Aileron Spar – RH .......................................................................1 ..........1 145.78
9 U182032 Reinforcement – Aileron .................................................2 ..........2 ..........4 7.47
10 U58273-6 Trim Tab (LH Only) ........................................................1 .......................1 58.54
11 18832-3 Angle – Aileron Horn .....................................................1 ..........1 ..........2 NM!
12 U18832 Aileron Horn Assembly ..................................................1 ..........1 ..........2 202.19
13 U18832-2 Aileron Horn ...................................................................1 ..........1 ..........2 102.88
14 AN3-5 Bolt .................................................................................1 ..........1 ..........2 0.6
15 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
16 U48272-8 Aileron Rib – Tip Outboard Leading Edge .....................1 ..........1 ..........2 22.38
17 U48272-6 Aileron Rib – Center and Inboard L.E. ...........................1 ..........1 ..........2 22.38
18 U18279 Aileron Hinge – Center – (Male) ....................................1 ..........1 ..........2 200.75
(Hinge consists of parts No. 18269-2 Tee and No.
S-82 Ball Bearing.)
19 AN23-13 Bolt .................................................................................1 ..........1 ..........2 1.2
20 NAS1149F0332P Washer – AN960-10 ........................................................2 ..........2 ..........4 0.04
21 AN320-3 Nut ..................................................................................1 ..........1 ..........2 1
22 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
23 U18270 Aileron Hinge – Tip Outboard – (Male) .........................1 ..........1 ..........2 135.25
(Hinge consists of Part No. 18270-2 Plate. and No.
S-82 Ball Bearing.)
24 U48272-2 Aileron Rib – Tip Outboard – LH .............................................................1 34.44
25 U48272-3 Aileron Rib – Tip Outboard – RH ...............................................1 ..........1 32.82
26 U58283-2 Leading Edge – Aileron Top – LH ..................................1 .......................1 141.78
26A U58283-1 Leading Edge – Aileron Top – RH ..............................................1 ..........1 57.85
27 U58283-4 Leading Edge – Aileron Bottom Outboard – LH ............1 .......................1 32.75
27A U58283-3 Leading Edge – Aileron Bottom Outboard – RH ........................1 ..........1 57.85
28 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head ....................48 ........48 ........96 0.1
29 U282161 Closeout Strip – Aileron Outboard – LH ........................1 .......................1 37.8
(Note: On metal wing only.)
29A U282161-1 Closeout Strip – Aileron Outboard – RH .....................................1 ..........1 37.8
(Note: On metal wing only.)
30 U18812 Stiffener – L.E. – Center .................................................2 ..........2 ..........4 15.69
31 U282160 Closeout Strip – Aileron Inboard – LH/RH ....................1 ..........1 ..........2 44.85

54
