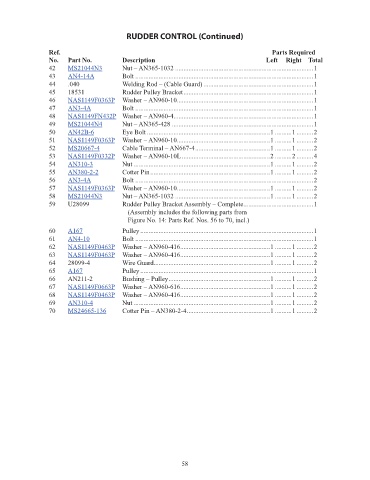

Page 61 - Luscombe Silvaire Model 8 Master Parts List

RUDDER CONTROL (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
42 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
43 AN4-14A Bolt ...........................................................................................................1 0.3
44 .040 Welding Rod – (Cable Guard) ..................................................................1 NM!
45 18531 Rudder Pulley Bracket ..............................................................................1 NM!
46 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
47 AN3-4A Bolt ...........................................................................................................1 0.2
48 NAS1149FN432P Washer – AN960-4 ....................................................................................1 0.04
49 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
50 AN42B-6 Eye Bolt ..........................................................................1 ..........1 ..........2 11.1
51 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
52 MS20667-4 Cable Terminal – AN667-4 .............................................1 ..........1 ..........2 20.52
53 NAS1149F0332P Washer – AN960-10L .....................................................2 ..........2 ..........4 0.04
54 AN310-3 Nut ..................................................................................1 ..........1 ..........2 1.5
55 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
56 AN3-4A Bolt ...........................................................................................................2 0.2
57 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
58 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
59 U28099 Rudder Pulley Bracket Assembly – Complete ..........................................1 NM!
(Assembly includes the following parts from
Figure No. 14: Parts Ref. Nos. 56 to 70, incl.)

60 A167 Pulley ........................................................................................................1 27.37
61 AN4-10 Bolt ...........................................................................................................1 0.78
62 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
63 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
64 28099-4 Wire Guard......................................................................1 ..........1 ..........2 NM!
65 A167 Pulley ........................................................................................................1 27.37
66 AN211-2 Bushing – Pulley .............................................................1 ..........1 ..........2 NM!
67 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
68 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
69 AN310-4 Nut ..................................................................................1 ..........1 ..........2 1.6
70 MS24665-136 Cotter Pin – AN380-2-4 ..................................................1 ..........1 ..........2 0.06

58
