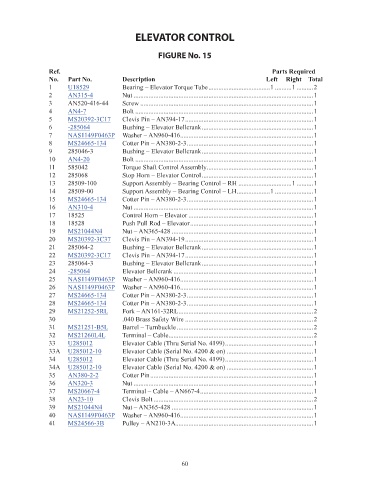

ELEVATOR CONTROL

FIGURE No. 15

Ref. Parts Required
No. Part No. Description Left Right Total
1 U18529 Bearing – Elevator Torque Tube .....................................1 ..........1 ..........2 128.65
2 AN315-4 Nut ............................................................................................................1 0.22
3 AN520-416-44 Screw ........................................................................................................1 NM!
4 AN4-7 Bolt ...........................................................................................................1 0.58
5 MS20392-3C17 Clevis Pin – AN394-17 .............................................................................1 0.44
6 -285064 Bushing – Elevator Bellcrank ...................................................................1 416.77
7 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
8 MS24665-134 Cotter Pin – AN380-2-3 ............................................................................1 0.06
9 285046-3 Bushing – Elevator Bellcrank ...................................................................1 NM!
10 AN4-20 Bolt ...........................................................................................................1 0.72
11 585042 Torque Shaft Control Assembly ................................................................1 NM!
12 285068 Stop Horn – Elevator Control ...................................................................1 NM!
13 28509-100 Support Assembly – Bearing Control – RH ................................1 ..........1 NM!
14 28509-00 Support Assembly – Bearing Control – LH ....................1 .......................1 NM!
15 MS24665-134 Cotter Pin – AN380-2-3 ............................................................................1 0.06
16 AN310-4 Nut ............................................................................................................1 1.6
17 18525 Control Horn – Elevator ...........................................................................1 NM!
18 18528 Push Pull Rod – Elevator ..........................................................................1 NM!
19 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
20 MS20392-3C37 Clevis Pin – AN394-19 .............................................................................1 0.66
21 285064-2 Bushing – Elevator Bellcrank ...................................................................1 NM!
22 MS20392-3C17 Clevis Pin – AN394-17 .............................................................................1 0.44
23 285064-3 Bushing – Elevator Bellcrank ...................................................................1 NM!
24 -285064 Elevator Bellcrank ....................................................................................1 416.77
25 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
26 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
27 MS24665-134 Cotter Pin – AN380-2-3 ............................................................................1 0.06
28 MS24665-134 Cotter Pin – AN380-2-3 ............................................................................1 0.06
29 MS21252-5RL Fork – AN161-32RL .................................................................................2 18.3
30 .040 Brass Safety Wire .............................................................................2 X
31 MS21251-B5L Barrel – Turnbuckle ..................................................................................2 10.06
32 MS21260L4L Terminal – Cable .......................................................................................2 11.22
33 U285012 Elevator Cable (Thru Serial No. 4199) .....................................................1 157.82
33A U285012-10 Elevator Cable (Serial No. 4200 & on) ....................................................1 179.56
34 U285012 Elevator Cable (Thru Serial No. 4199) .....................................................1 157.82
34A U285012-10 Elevator Cable (Serial No. 4200 & on) ....................................................1 179.56
35 AN380-2-2 Cotter Pin ..................................................................................................1 0.04
36 AN320-3 Nut ............................................................................................................1 1
37 MS20667-4 Terminal – Cable – AN667-4 ....................................................................1 20.52
38 AN23-10 Clevis Bolt ................................................................................................2 1.82
39 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
40 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
41 MS24566-3B Pulley – AN210-3A ...................................................................................1 40.94

60
