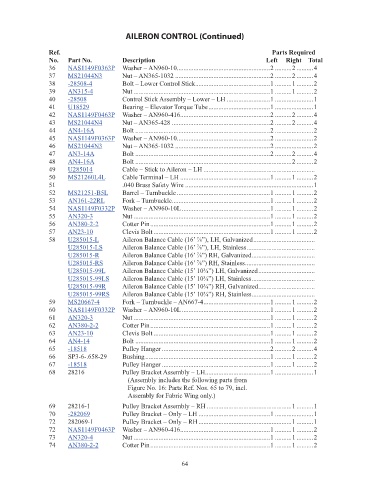

Page 67 - Luscombe Silvaire Model 8 Master Parts List

AILERON CONTROL (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
36 NAS1149F0363P Washer – AN960-10 ........................................................2 ..........2 ..........4 0.04
37 MS21044N3 Nut – AN365-1032 .........................................................2 ..........2 ..........4 0.24
38 -28508-4 Bolt – Lower Control Stick .............................................1 ..........1 ..........2 20.56
39 AN315-4 Nut ..................................................................................1 ..........1 ..........2 0.22
40 -28508 Control Stick Assembly – Lower – LH ..........................1 .......................1 151.23
41 U18529 Bearing – Elevator Torque Tube .....................................1 .......................1 128.65
42 NAS1149F0463P Washer – AN960-416 ......................................................2 ..........2 ..........4 0.06
43 MS21044N4 Nut – AN365-428 ...........................................................2 ..........2 ..........4 0.3
44 AN4-16A Bolt .................................................................................2 .......................2 0.4
45 NAS1149F0363P Washer – AN960-10 ........................................................2 .......................2 0.04
46 MS21044N3 Nut – AN365-1032 .........................................................2 .......................2 0.24
47 AN3-14A Bolt .................................................................................2 ..........2 ..........4 0.18
48 AN4-16A Bolt ..............................................................................................2 ..........2 0.4
49 U285014 Cable – Stick to Aileron – LH ................................................................... 179.86
50 MS21260L4L Cable Terminal – LH ......................................................1 ..........1 ..........2 11.22
51 .040 Brass Safety Wire .............................................................................1 X
52 MS21251-B5L Barrel – Turnbuckle ........................................................1 ..........1 ..........2 10.06
53 AN161-22RL Fork – Turnbuckle ...........................................................1 ..........1 ..........2 26.24
54 NAS1149F0332P Washer – AN960-10L .....................................................1 ..........1 ..........2 0.04
55 AN320-3 Nut ..................................................................................1 ..........1 ..........2 1
56 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
57 AN23-10 Clevis Bolt ......................................................................1 ..........1 ..........2 1.82
58 U285015-L Aileron Balance Cable (16’ ⁄8”), LH, Galvanized ..................................... 169.07
7
U285015-LS Aileron Balance Cable (16’ ⁄8”), LH, Stainless ......................................... 201.04
7
U285015-R Aileron Balance Cable (16’ ⁄8”) RH, Galvanized ...................................... 169.07
7
U285015-RS Aileron Balance Cable (16’ ⁄8”) RH, Stainless .......................................... 201.04
7
U285015-99L Aileron Balance Cable (15’ 10¾”) LH, Galvanized .................................. 143.37
U285015-99LS Aileron Balance Cable (15’ 10¾”) LH, Stainless ...................................... 173.81
U285015-99R Aileron Balance Cable (15’ 10¾”) RH, Galvanized .................................. 143.37
U285015-99RS Aileron Balance Cable (15’ 10¾”) RH, Stainless ...................................... 145.35
59 MS20667-4 Fork – Turnbuckle – AN667-4 ........................................1 ..........1 ..........2 20.52
60 NAS1149F0332P Washer – AN960-10L .....................................................1 ..........1 ..........2 0.04
61 AN320-3 Nut ..................................................................................1 ..........1 ..........2 1
62 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
63 AN23-10 Clevis Bolt ......................................................................1 ..........1 ..........2 1.82
64 AN4-14 Bolt .................................................................................1 ..........1 ..........2 0.7
65 -18518 Pulley Hanger .................................................................2 ..........2 ..........4 62.05
66 SP3-6-.658-29 Bushing ...........................................................................1 ..........1 ..........2 NM!
67 -18518 Pulley Hanger .................................................................1 ..........1 ..........2 62.05
68 28216 Pulley Bracket Assembly – LH .......................................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 16: Parts Ref. Nos. 65 to 79, incl.
Assembly for Fabric Wing only.)
69 28216-1 Pulley Bracket Assembly – RH ...................................................1 ..........1 NM!
70 -282069 Pulley Bracket – Only – LH ...........................................1 .......................1 147.86
72 282069-1 Pulley Bracket – Only – RH ........................................................1 ..........1 NM!
72 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
73 AN320-4 Nut ..................................................................................1 ..........1 ..........2 1.44
74 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04

64
