Page 71 - Luscombe Silvaire Model 8 Master Parts List
P. 71

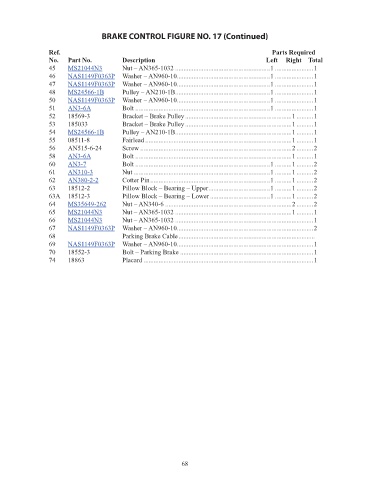

BRAKE CONTROL FIGURE NO. 17 (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
45 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
46 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
47 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
48 MS24566-1B Pulley – AN210-1B .........................................................1 .......................1 41.72
50 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
51 AN3-6A Bolt .................................................................................1 .......................1 0.16
52 18569-3 Bracket – Brake Pulley ................................................................1 ..........1 NM!
53 185033 Bracket – Brake Pulley ................................................................1 ..........1 NM!
54 MS24566-1B Pulley – AN210-1B ......................................................................1 ..........1 41.72
55 08511-8 Fairlead ........................................................................................1 ..........1 NM!
56 AN515-6-24 Screw ...........................................................................................2 ..........2 NM!
58 AN3-6A Bolt ..............................................................................................1 ..........1 0.16
60 AN3-7 Bolt .................................................................................1 ..........1 ..........2 1
61 AN310-3 Nut ..................................................................................1 ..........1 ..........2 1.5
62 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
63 18512-2 Pillow Block – Bearing – Upper .....................................1 ..........1 ..........2 NM!
63A 18512-3 Pillow Block – Bearing – Lower ....................................1 ..........1 ..........2 NM!
64 MS35649-262 Nut – AN340-6 ............................................................................2 ..........2 0.14
65 MS21044N3 Nut – AN365-1032 ......................................................................1 ..........1 0.24
66 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
67 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
68 Parking Brake Cable .................................................................................. X
69 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
70 18552-3 Bolt – Parking Brake ................................................................................1 NM!
74 18863 Placard ......................................................................................................1 NM!
68
