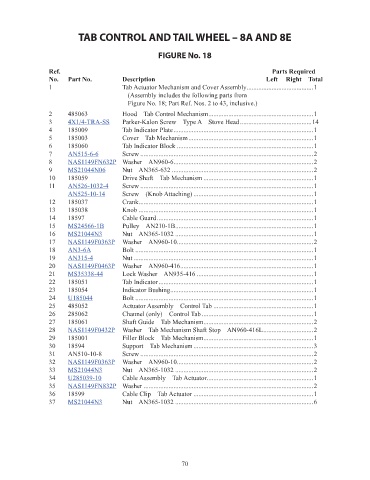

TAB CONTROL AND TAIL WHEEL – 8A AND 8E

FIGURE No. 18

Ref. Parts Required
No. Part No. Description Left Right Total
1 Tab Actuator Mechanism and Cover Assembly ........................................1 X
(Assembly includes the following parts from
Figure No. 18; Part Ref. Nos. 2 to 43, inclusive.)
2 485063 Hood – Tab Control Mechanism ...............................................................1 NM!
3 4X1/4-TRA-SS Parker-Kalon Screw – Type A – Stove Head ...........................................14 0.1
4 185009 Tab Indicator Plate ....................................................................................1 NM!
5 185003 Cover – Tab Mechanism ...........................................................................1 NM!
6 185060 Tab Indicator Block ..................................................................................1 NM!
7 AN515-6-6 Screw ........................................................................................................2 0.11
8 NAS1149FN632P Washer – AN960-6 ....................................................................................2 0.06
9 MS21044N06 Nut – AN365-632 .....................................................................................2 0.32
10 185059 Drive Shaft – Tab Mechanism ..................................................................1 NM!
11 AN526-1032-4 Screw ........................................................................................................1 0.11
AN525-10-14 Screw – (Knob Attaching) ........................................................................1 0.7
12 185037 Crank .........................................................................................................1 NM!
13 185038 Knob .........................................................................................................1 NM!
14 18597 Cable Guard ..............................................................................................1 NM!
15 MS24566-1B Pulley – AN210-1B ...................................................................................1 41.72
16 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
17 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
18 AN3-6A Bolt ...........................................................................................................1 0.16
19 AN315-4 Nut ............................................................................................................1 0.22
20 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
21 MS35338-44 Lock Washer – AN935-416 ......................................................................1 0.08
22 185051 Tab Indicator .............................................................................................1 NM!
23 185054 Indicator Bushing ......................................................................................1 NM!
24 U185044 Bolt ...........................................................................................................1 27
25 485052 Actuator Assembly – Control Tab ............................................................1 NM!
26 285062 Channel (only) – Control Tab ...................................................................1 NM!
27 185061 Shaft Guide – Tab Mechanism ..................................................................2 NM!
28 NAS1149F0432P Washer – Tab Mechanism Shaft Stop – AN960-416L ..............................2 0.04
29 185001 Filler Block – Tab Mechanism ..................................................................1 NM!
30 18594 Support – Tab Mechanism ........................................................................3 NM!
31 AN510-10-8 Screw ........................................................................................................2 NM!
32 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
33 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
34 U285039-10 Cable Assembly – Tab Actuator ................................................................1 158.44
35 NAS1149FN832P Washer ......................................................................................................2 0.04
36 18599 Cable Clip – Tab Actuator ........................................................................1 NM!
37 MS21044N3 Nut – AN365-1032 ...................................................................................6 0.24

70
