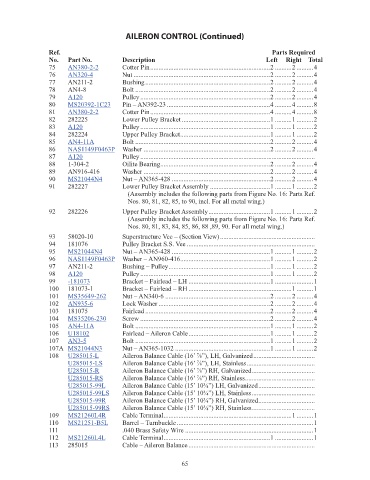

Page 68 - Luscombe Silvaire Model 8 Master Parts List

AILERON CONTROL (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
75 AN380-2-2 Cotter Pin ........................................................................2 ..........2 ..........4 0.04
76 AN320-4 Nut ..................................................................................2 ..........2 ..........4 1.44
77 AN211-2 Bushing ...........................................................................2 ..........2 ..........4 NM!
78 AN4-8 Bolt .................................................................................2 ..........2 ..........4 NM!
79 A120 Pulley ..............................................................................2 ..........2 ..........4 14.85
80 MS20392-1C23 Pin – AN392-23 ..............................................................4 ..........4 ..........8 0.6
81 AN380-2-2 Cotter Pin ........................................................................4 ..........4 ..........8 0.04
82 282225 Lower Pulley Bracket .....................................................1 ..........1 ..........2 NM!
83 A120 Pulley ..............................................................................1 ..........1 ..........2 14.85
84 282224 Upper Pulley Bracket ......................................................1 ..........1 ..........2 NM!
85 AN4-11A Bolt .................................................................................2 ..........2 ..........4 0.32
86 NAS1149F0463P Washer ............................................................................2 ..........2 ..........4 0.06
87 A120 Pulley ......................................................................................................... 14.85
88 1-304-2 Oilite Bearing ..................................................................2 ..........2 ..........4 NM!
89 AN916-416 Washer ............................................................................2 ..........2 ..........4 NM!
90 MS21044N4 Nut – AN365-428 ...........................................................2 ..........2 ..........4 0.3
91 282227 Lower Pulley Bracket Assembly ....................................1 ..........1 ..........2 NM!
(Assembly includes the following parts from Figure No. 16: Parts Ref.
Nos. 80, 81, 82, 85, to 90, incl. For all metal wing.)

92 282226 Upper Pulley Bracket Assembly .....................................1 ..........1 ..........2 NM!
(Assembly includes the following parts from Figure No. 16: Parts Ref.
Nos. 80, 81, 83, 84, 85, 86, 88 ,89, 90. For all metal wing.)
93 58020-10 Superstructure Vee – (Section View) ......................................................... NM!
94 181076 Pulley Bracket S.S. Vee ............................................................................. NM!
95 MS21044N4 Nut – AN365-428 ...........................................................1 ..........1 ..........2 0.3
96 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
97 AN211-2 Bushing – Pulley .............................................................1 ..........1 ..........2 NM!
98 A120 Pulley ..............................................................................1 ..........1 ..........2 14.85
99 -181073 Bracket – Fairlead – LH .................................................1 .......................1 97.56
100 181073-1 Bracket – Fairlead – RH ..............................................................1 ..........1 NM!
101 MS35649-262 Nut – AN340-6 ...............................................................2 ..........2 ..........4 0.14
102 AN935-6 Lock Washer ...................................................................2 ..........2 ..........4 0.02
103 181075 Fairlead ...........................................................................2 ..........2 ..........4 NM!
104 MS35206-230 Screw ..............................................................................2 ..........2 ..........4 0.08
105 AN4-11A Bolt .................................................................................1 ..........1 ..........2 0.32
106 U18102 Fairlead – Aileron Cable .................................................1 ..........1 ..........2 21.86
107 AN3-5 Bolt .................................................................................1 ..........1 ..........2 0.6
107A MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
108 U285015-L Aileron Balance Cable (16’ ⁄8”), LH, Galvanized ..................................... 169.07
7
U285015-LS Aileron Balance Cable (16’ ⁄8”), LH, Stainless ......................................... 201.04
7
U285015-R Aileron Balance Cable (16’ ⁄8”) RH, Galvanized ...................................... 169.07
7
U285015-RS Aileron Balance Cable (16’ ⁄8”) RH, Stainless .......................................... 201.04
7
U285015-99L Aileron Balance Cable (15’ 10¾”) LH, Galvanized .................................. 143.37
U285015-99LS Aileron Balance Cable (15’ 10¾”) LH, Stainless ...................................... 173.81
U285015-99R Aileron Balance Cable (15’ 10¾”) RH, Galvanized .................................. 143.37
U285015-99RS Aileron Balance Cable (15’ 10¾”) RH, Stainless ...................................... 145.35
109 MS21260L4R Cable Terminal .............................................................................1 ..........1 11.22
110 MS21251-B5L Barrel – Turnbuckle ..................................................................................1 10.06
111 .040 Brass Safety Wire .............................................................................1 X
112 MS21260L4L Cable Terminal ................................................................1 .......................1 11.22
113 285015 Cable – Aileron Balance ............................................................................ NM!

65
