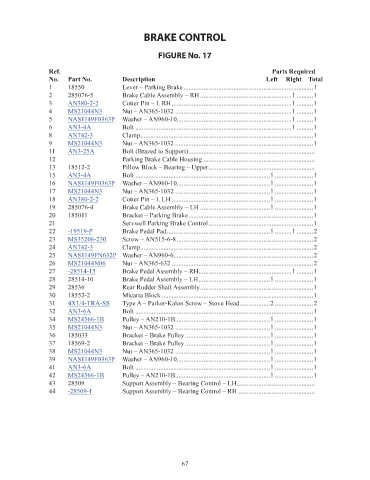

BRAKE CONTROL

FIGURE No. 17

Ref. Parts Required
No. Part No. Description Left Right Total
1 18550 Lever – Parking Brake ..............................................................................1 NM!
2 285076-5 Brake Cable Assembly – RH .......................................................1 ..........1 NM!
3 AN380-2-2 Cotter Pin – I. RH ........................................................................1 ..........1 0.04
4 MS21044N3 Nut – AN365-1032 ......................................................................1 ..........1 0.24
5 NAS1149F0363P Washer – AN960-10 .....................................................................1 ..........1 0.04
6 AN3-4A Bolt ..............................................................................................1 ..........1 0.2
8 AN742-3 Clamp ........................................................................................................1 0.72
9 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
11 AN3-25A Bolt (Brazed to Support) ............................................................................ 0.5
12 Parking Brake Cable Housing ................................................................... X
13 18512-2 Pillow Block – Bearing – Upper ................................................................ NM!
15 AN3-4A Bolt .................................................................................1 .......................1 0.2
16 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
17 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
18 AN380-2-2 Cotter Pin – I. LH ...........................................................1 .......................1 0.04
19 285076-4 Brake Cable Assembly – LH ..........................................1 .......................1 NM!
20 185011 Bracket – Parking Brake ...........................................................................1 NM!
21 Servwell Parking Brake Control ...............................................................1 X
22 -19519-P Brake Pedal Pad ..............................................................1 ..........1 ..........2 27.5
23 MS35206-230 Screw – AN515-6-8 ..................................................................................2 0.08
24 AN742-3 Clamp ........................................................................................................2 0.72
25 NAS1149FN632P Washer – AN960-6 ....................................................................................2 0.06
26 MS21044N06 Nut – AN365-632 .....................................................................................2 0.32
27 -28514-15 Brake Pedal Assembly – RH ........................................................1 ..........1 275.89
28 28514-10 Brake Pedal Assembly – LH ...........................................1 .......................1 NM!
29 28536 Rear Rudder Shaft Assembly ....................................................................1 NM!
30 18552-2 Micarta Block ...........................................................................................1 NM!
31 4X1/4-TRA-SS Type A – Parker-Kalon Screw – Stove Head ..................2 .......................2 0.1
32 AN3-6A Bolt ...........................................................................................................1 0.16
34 MS24566-1B Pulley – AN210-1B .........................................................1 .......................1 41.72
35 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
36 185033 Bracket – Brake Pulley ...................................................1 .......................1 NM!
37 18569-2 Bracket – Brake Pulley ...................................................1 .......................1 NM!
38 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
39 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
41 AN3-6A Bolt .................................................................................1 .......................1 0.16
42 MS24566-1B Pulley – AN210-1B .........................................................1 .......................1 41.72
43 28509 Support Assembly – Bearing Control – LH ............................................... NM!
44 -28509-1 Support Assembly – Bearing Control – RH .............................................. 63.71

67
