Page 64 - Luscombe Silvaire Model 8 Master Parts List

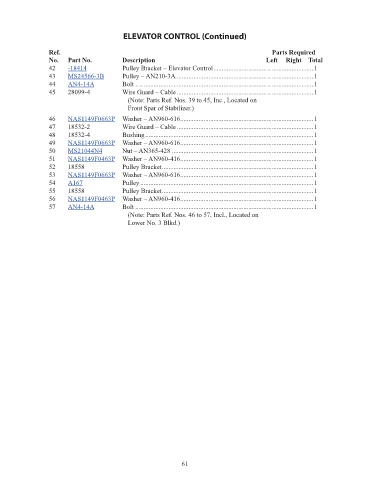

ELEVATOR CONTROL (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
42 -18414 Pulley Bracket – Elevator Control ............................................................1 178.62
43 MS24566-3B Pulley – AN210-3A ...................................................................................1 40.94
44 AN4-14A Bolt ...........................................................................................................1 0.3
45 28099-4 Wire Guard – Cable ..................................................................................1 NM!
(Note: Parts Ref. Nos. 39 to 45, Inc., Located on
Front Spar of Stabilizer.)

46 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
47 18532-2 Wire Guard – Cable ..................................................................................1 NM!
48 18532-4 Bushing .....................................................................................................1 NM!
49 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
50 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
51 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
52 18558 Pulley Bracket ...........................................................................................1 NM!
53 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
54 A167 Pulley ........................................................................................................1 27.37
55 18558 Pulley Bracket ...........................................................................................1 NM!
56 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
57 AN4-14A Bolt ...........................................................................................................1 0.3
(Note: Parts Ref. Nos. 46 to 57, Incl., Located on
Lower No. 3 Blkd.)

61
