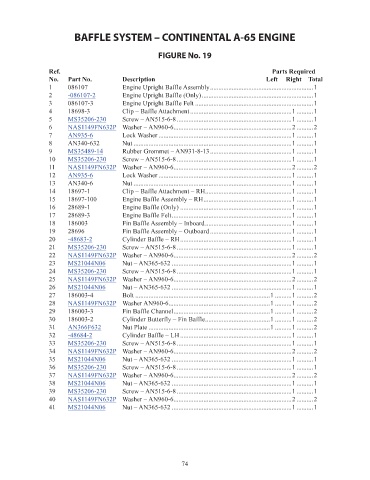

Page 77 - Luscombe Silvaire Model 8 Master Parts List

BAFFLE SYSTEM – CONTINENTAL A-65 ENGINE

FIGURE No. 19

Ref. Parts Required
No. Part No. Description Left Right Total
1 086107 Engine Upright Baffle Assembly ..............................................................1 NM!
2 -086107-2 Engine Upright Baffle (Only) ...................................................................1 396.41
3 086107-3 Engine Upright Baffle Felt .......................................................................1 NM!
4 18698-3 Clip – Baffle Attachment .............................................................1 ..........1 NM!
5 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
6 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
7 AN935-6 Lock Washer ................................................................................1 ..........1 0.02
8 AN340-632 Nut ...............................................................................................1 ..........1 NM!
9 MS35489-14 Rubber Grommet – AN931-8-13 .................................................1 ..........1 0.78
10 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
11 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
12 AN935-6 Lock Washer ................................................................................1 ..........1 0.02
13 AN340-6 Nut ...............................................................................................1 ..........1 NM!
14 18697-1 Clip – Baffle Attachment – RH ....................................................1 ..........1 NM!
15 18697-100 Engine Baffle Assembly – RH .....................................................1 ..........1 NM!
16 28689-1 Engine Baffle (Only) ...................................................................1 ..........1 NM!
17 28689-3 Engine Baffle Felt ........................................................................1 ..........1 NM!
18 186003 Fin Baffle Assembly – Inboard ....................................................1 ..........1 NM!
19 28696 Fin Baffle Assembly – Outboard .................................................1 ..........1 NM!
20 -48683-2 Cylinder Baffle – RH ...................................................................1 ..........1 98.7
21 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
22 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
23 MS21044N06 Nut – AN365-632 ........................................................................1 ..........1 0.32
24 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
25 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
26 MS21044N06 Nut – AN365-632 ........................................................................1 ..........1 0.32
27 186003-4 Bolt .................................................................................1 ..........1 ..........2 NM!
28 NAS1149FN632P Washer AN960-6 .............................................................1 ..........1 ..........2 0.06
29 186003-3 Fin Baffle Channel ..........................................................1 ..........1 ..........2 NM!
30 186003-2 Cylinder Butterfly – Fin Baffle .......................................1 ..........1 ..........2 NM!
31 AN366F632 Nut Plate .........................................................................1 ..........1 ..........2 1
32 -48684-2 Cylinder Baffle – LH ...................................................................1 ..........1 110.02
33 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
34 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
35 MS21044N06 Nut – AN365-632 ........................................................................1 ..........1 0.32
36 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
37 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
38 MS21044N06 Nut – AN365-632 ........................................................................1 ..........1 0.32
39 MS35206-230 Screw – AN515-6-8 .....................................................................1 ..........1 0.08
40 NAS1149FN632P Washer – AN960-6 .......................................................................2 ..........2 0.06
41 MS21044N06 Nut – AN365-632 ........................................................................1 ..........1 0.32
