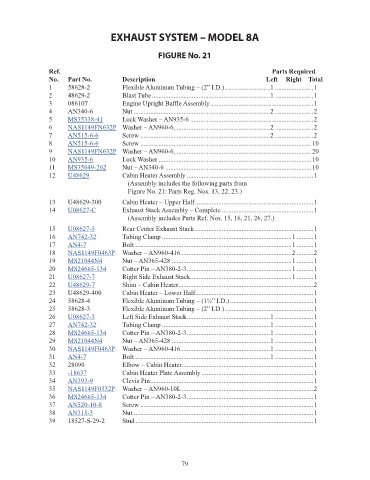

EXHAUST SYSTEM – MODEL 8A

FIGURE No. 21

Ref. Parts Required
No. Part No. Description Left Right Total
1 58628-2 Flexible Aluminum Tubing – (2” I.D.) ...........................1 .......................1 NM!
2 48629-2 Blast Tube .......................................................................1 .......................1 NM!
3 086107 Engine Upright Baffle Assembly ..............................................................1 NM!
4 AN340-6 Nut ..................................................................................2 .......................2 NM!
5 MS35338-41 Lock Washer – AN935-6 ..........................................................................2 0.3
6 NAS1149FN632P Washer – AN960-6 ..........................................................2 .......................2 0.06
7 AN515-6-6 Screw ..............................................................................2 .......................2 0.11
8 AN515-6-6 Screw .......................................................................................................10 0.11
9 NAS1149FN632P Washer – AN960-6 ...................................................................................20 0.06
10 AN935-6 Lock Washer ............................................................................................10 0.02
11 MS35649-262 Nut – AN340-6 ........................................................................................10 0.14
12 U48629 Cabin Heater Assembly ............................................................................1 486.02
(Assembly includes the following parts from
Figure No. 21: Parts Reg. Nos. 13, 22, 23.)

13 U48629-300 Cabin Heater – Upper Half .......................................................................1 NM!
14 U08627-C Exhaust Stack Assembly – Complete .......................................................1 1284.1
(Assembly includes Parts Ref. Nos. 15, 16, 21, 26, 27.)
15 U08627-5 Rear Center Exhaust Stack .......................................................................1 458.43
16 AN742-32 Tubing Clamp ..............................................................................1 ..........1 9.69
17 AN4-7 Bolt ..............................................................................................1 ..........1 0.58
18 NAS1149F0463P Washer – AN960-416 ...................................................................2 ..........2 0.06
19 MS21044N4 Nut – AN365-428 ........................................................................1 ..........1 0.3
20 MS24665-134 Cotter Pin – AN380-2-3 ...............................................................1 ..........1 0.06
21 U08627-7 Right Side Exhaust Stack .............................................................1 ..........1 448.73
22 U48629-7 Shim – Cabin Heater .................................................................................2 10.26
23 U48629-400 Cabin Heater – Lower Half .......................................................................1 NM!
24 58628-4 Flexible Aluminum Tubing – (1½” I.D.) ..................................................1 NM!
25 58628-3 Flexible Aluminum Tubing – (2” I.D.) .....................................................1 NM!
26 U08627-3 Left Side Exhaust Stack ..................................................1 .......................1 499.75
27 AN742-32 Tubing Clamp .................................................................1 .......................1 9.69
28 MS24665-134 Cotter Pin – AN380-2-3 ..................................................1 .......................1 0.06
29 MS21044N4 Nut – AN365-428 ...........................................................1 .......................1 0.3
30 NAS1149F0463P Washer – AN960-416 ......................................................1 .......................1 0.06
31 AN4-7 Bolt .................................................................................1 .......................1 0.58
32 28090 Elbow – Cabin Heater ...............................................................................1 NM!
33 -18637 Cabin Heater Plate Assembly ...................................................................1 52.98
34 AN393-9 Clevis Pin ..................................................................................................1 1.03
35 NAS1149F0332P Washer – AN960-10L ...............................................................................2 0.04
36 MS24665-134 Cotter Pin – AN380-2-3 ............................................................................1 0.06
37 AN520-10-8 Screw ........................................................................................................1 0.07
38 AN315-3 Nut ............................................................................................................1 0.26
39 18527-S-29-2 Stud ...........................................................................................................1 NM!
