Page 85 - Luscombe Silvaire Model 8 Master Parts List

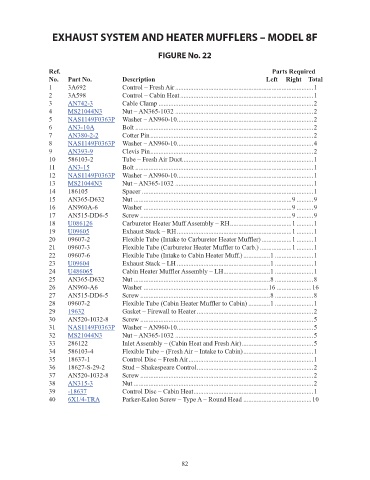

EXHAUST SYSTEM AND HEATER MUFFLERS – MODEL 8F

FIGURE No. 22

Ref. Parts Required
No. Part No. Description Left Right Total
1 3A692 Control – Fresh Air ...................................................................................1 NM!
2 3A598 Control – Cabin Heat ................................................................................1 NM!
3 AN742-3 Cable Clamp .............................................................................................2 0.72
4 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
5 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
6 AN3-10A Bolt ...........................................................................................................2 0.2
7 AN380-2-2 Cotter Pin ..................................................................................................2 0.04
8 NAS1149F0363P Washer – AN960-10 ..................................................................................4 0.04
9 AN393-9 Clevis Pin ..................................................................................................2 1.03
10 586103-2 Tube – Fresh Air Duct...............................................................................1 NM!
11 AN3-15 Bolt ...........................................................................................................1 0.84
12 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
13 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
14 186105 Spacer .......................................................................................................1 NM!
15 AN365-D632 Nut ...............................................................................................9 ..........9 NM!
16 AN960A-6 Washer .........................................................................................9 ..........9 NM!
17 AN515-DD6-5 Screw ...........................................................................................9 ..........9 NM!
18 U086126 Carburetor Heater Muff Assembly – RH .....................................1 ..........1 823.44
19 U09605 Exhaust Stack – RH .....................................................................1 ..........1 837.56
20 09607-2 Flexible Tube (Intake to Carburetor Heater Muffler) ..................1 ..........1 NM!
21 09607-3 Flexible Tube (Carburetor Heater Muffler to Carb.) ...................1 ..........1 NM!
22 09607-6 Flexible Tube (Intake to Cabin Heater Muff.) ................1 .......................1 NM!
23 U09604 Exhaust Stack – LH ........................................................1 .......................1 837.56
24 U486065 Cabin Heater Muffler Assembly – LH ............................1 .......................1 451.07
25 AN365-D632 Nut ..................................................................................8 .......................8 NM!
26 AN960-A6 Washer ...........................................................................16 .....................16 NM!
27 AN515-DD6-5 Screw ..............................................................................8 .......................8 NM!
28 09607-2 Flexible Tube (Cabin Heater Muffler to Cabin) .............1 .......................1 NM!
29 19632 Gasket – Firewall to Heater ......................................................................2 41.98
30 AN520-1032-8 Screw ........................................................................................................5 NM!
31 NAS1149F0363P Washer – AN960-10 ..................................................................................5 0.04
32 MS21044N3 Nut – AN365-1032 ...................................................................................5 0.24
33 286122 Inlet Assembly – (Cabin Heat and Fresh Air) ...........................................5 NM!
34 586103-4 Flexible Tube – (Fresh Air – Intake to Cabin) ..........................................1 NM!
35 18637-1 Control Disc – Fresh Air ...........................................................................1 NM!
36 18627-S-29-2 Stud – Shakespeare Control ......................................................................2 NM!
37 AN520-1032-8 Screw ........................................................................................................2 NM!
38 AN315-3 Nut ............................................................................................................2 0.26
39 -18637 Control Disc – Cabin Heat ........................................................................1 52.98
40 6X1/4-TRA Parker-Kalon Screw – Type A – Round Head .........................................10 0.1

82
