Page 83 - Luscombe Silvaire Model 8 Master Parts List
P. 83

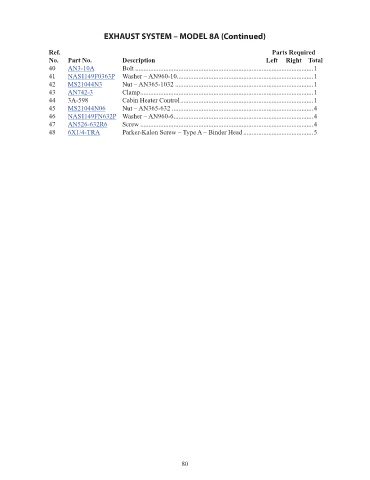

EXHAUST SYSTEM – MODEL 8A (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
40 AN3-10A Bolt ...........................................................................................................1 0.2
41 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
42 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
43 AN742-3 Clamp ........................................................................................................1 0.72
44 3A-598 Cabin Heater Control ................................................................................1 NM!
45 MS21044N06 Nut – AN365-632 .....................................................................................4 0.32
46 NAS1149FN632P Washer – AN960-6 ....................................................................................4 0.06
47 AN526-632R6 Screw ........................................................................................................4 0.2
48 6X1/4-TRA Parker-Kalon Screw – Type A – Binder Head ..........................................5 0.1
80
