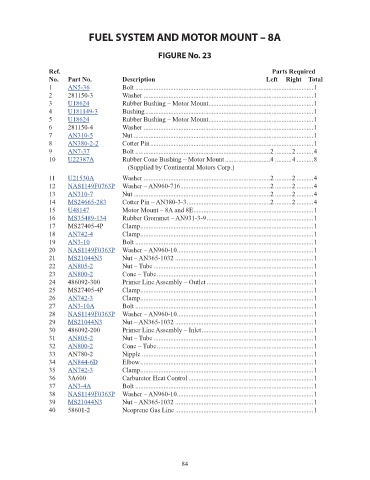

FUEL SYSTEM AND MOTOR MOUNT – 8A

FIGURE No. 23

Ref. Parts Required
No. Part No. Description Left Right Total
1 AN5-36 Bolt ...........................................................................................................1 3.2
2 281150-3 Washer ......................................................................................................1 NM!
3 U18624 Rubber Bushing – Motor Mount ...............................................................1 45.66
4 U181149-3 Bushing .....................................................................................................1 22.72
5 U18624 Rubber Bushing – Motor Mount ...............................................................1 45.66
6 281150-4 Washer ......................................................................................................1 NM!
7 AN310-5 Nut ............................................................................................................1 2
8 AN380-2-2 Cotter Pin ..................................................................................................1 0.04
9 AN7-37 Bolt .................................................................................2 ..........2 ..........4 5.2
10 U22387A Rubber Cone Bushing – Motor Mount ...........................4 ..........4 ..........8 6.56
(Supplied by Continental Motors Corp.)
11 U21530A Washer ............................................................................2 ..........2 ..........4 7.84
12 NAS1149F0763P Washer – AN960-716 ......................................................2 ..........2 ..........4 0.17
13 AN310-7 Nut ..................................................................................2 ..........2 ..........4 1.5
14 MS24665-283 Cotter Pin – AN380-3-3 ..................................................2 ..........2 ..........4 0.04
15 U48147 Motor Mount – 8A and 8E ........................................................................1 1847.51
16 MS35489-134 Rubber Grommet – AN931-3-9 ................................................................1 0.71
17 MS27405-4P Clamp ........................................................................................................1 NM!
18 AN742-4 Clamp ........................................................................................................1 0.68
19 AN3-10 Bolt ...........................................................................................................1 0.72
20 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
21 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
22 AN805-2 Nut – Tube ................................................................................................1 3
23 AN800-2 Cone – Tube ..............................................................................................1 6.94
24 486092-300 Primer Line Assembly – Outlet ................................................................1 NM!
25 MS27405-4P Clamp ........................................................................................................1 NM!
26 AN742-3 Clamp ........................................................................................................1 0.72
27 AN3-10A Bolt ...........................................................................................................1 0.2
28 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
29 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
30 486092-200 Primer Line Assembly – Inlet ...................................................................1 NM!
31 AN805-2 Nut – Tube ................................................................................................1 3
32 AN800-2 Cone – Tube ..............................................................................................1 6.94
33 AN780-2 Nipple .......................................................................................................1 NM!
34 AN844-6D Elbow ........................................................................................................1 35.27
35 AN742-3 Clamp ........................................................................................................1 0.72
36 3A600 Carburetor Heat Control ...........................................................................1 NM!
37 AN3-4A Bolt ...........................................................................................................1 0.2
38 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
39 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
40 58601-2 Neoprene Gas Line ...................................................................................1 NM!

84
