Page 91 - Luscombe Silvaire Model 8 Master Parts List

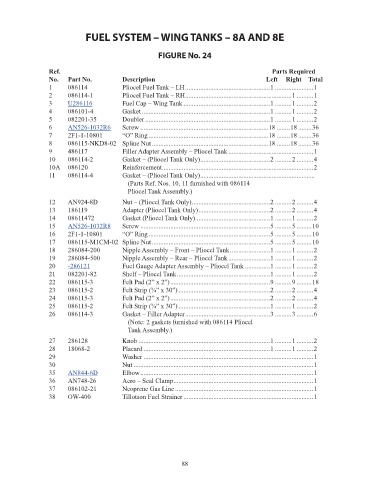

FUEL SYSTEM – WING TANKS – 8A AND 8E

FIGURE No. 24

Ref. Parts Required
No. Part No. Description Left Right Total
1 086114 Pliocel Fuel Tank – LH ...................................................1 .......................1 NM!
2 086114-1 Pliocel Fuel Tank – RH ................................................................1 ..........1 NM!
3 U286116 Fuel Cap – Wing Tank ....................................................1 ..........1 ..........2 204.89
4 086101-4 Gasket .............................................................................1 ..........1 ..........2 NM!
5 082201-35 Doubler ...........................................................................1 ..........1 ..........2 NM!
6 AN526-1032R6 Screw .............................................................................18 ........18 ........36 0.16
7 2F1-1-10801 “O” Ring ........................................................................18 ........18 ........36 NM!
8 086115-NKD8-02 Spline Nut ......................................................................18 ........18 ........36 NM!
9 486117 Filler Adapter Assembly – Pliocel Tank ...................................................1 NM!
10 086114-2 Gasket – (Pliocel Tank Only) ..........................................2 ..........2 ..........4 NM!
10A 086120 Reinforcement ...........................................................................................2 NM!
11 086114-4 Gasket – (Pliocel Tank Only) ..................................................................... NM!
(Parts Ref. Nos. 10, 11 furnished with 086114
Pliocel Tank Assembly.)

12 AN924-8D Nut – (Pliocel Tank Only) ...............................................2 ..........2 ..........4 NM!
13 186119 Adapter (Pliocel Tank Only) ...........................................2 ..........2 ..........4 NM!
14 08611472 Gasket (Pliocel Tank Only) .............................................1 ..........1 ..........2 NM!
15 AN526-1032R8 Screw ..............................................................................5 ..........5 .........10 0.18
16 2F1-1-10801 “O” Ring .........................................................................5 ..........5 .........10 NM!
17 086115-M1CM-02 Spline Nut .......................................................................5 ..........5 .........10 NM!
18 286084-200 Nipple Assembly – Front – Pliocel Tank ........................1 ..........1 ..........2 NM!
19 286084-500 Nipple Assembly – Rear – Pliocel Tank .........................1 ..........1 ..........2 NM!
20 -286121 Fuel Gauge Adapter Assembly – Pliocel Tank ...............1 ..........1 ..........2 121.47
21 082201-82 Shelf – Pliocel Tank ........................................................1 ..........1 ..........2 NM!
22 086115-3 Felt Pad (2” x 2”) ............................................................9 ..........9 .........18 NM!
23 086115-2 Felt Strip (¾” x 30”) .......................................................2 ..........2 ..........4 NM!
24 086115-3 Felt Pad (2” x 2”) ............................................................2 ..........2 ..........4 NM!
25 086115-2 Felt Strip (¾” x 30”) .......................................................1 ..........1 ..........2 NM!
26 086114-3 Gasket – Filler Adapter ...................................................3 ..........3 ..........6 NM!
(Note: 2 gaskets furnished with 086114 Pliocel
Tank Assembly.)
27 286128 Knob ...............................................................................1 ..........1 ..........2 NM!
28 18068-2 Placard ............................................................................1 ..........1 ..........2 NM!
29 Washer ......................................................................................................1 X
30 Nut ............................................................................................................1 X
35 AN844-6D Elbow ........................................................................................................1 35.27
36 AN748-26 Aero – Seal Clamp ....................................................................................1 NM!
37 086102-21 Neoprene Gas Line ...................................................................................1 NM!
38 OW-400 Tillotson Fuel Strainer ..............................................................................1 NM!

88
