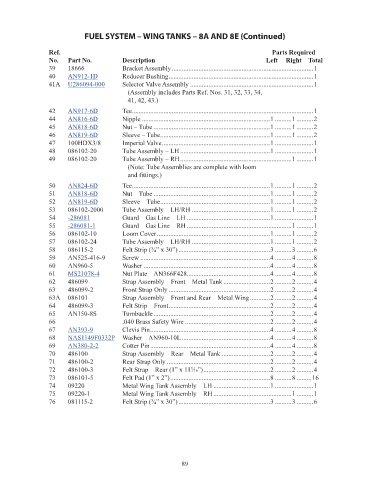

Page 92 - Luscombe Silvaire Model 8 Master Parts List

FUEL SYSTEM – WING TANKS – 8A AND 8E (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
39 18666 Bracket Assembly .....................................................................................1 NM!
40 AN912-1D Reducer Bushing .......................................................................................1 8.04
41A U286094-000 Selector Valve Assembly ..........................................................................1 480.63
(Assembly includes Parts Ref. Nos. 31, 32, 33, 34,
41, 42, 43.)
42 AN917-6D Tee .............................................................................................................1 36.9
44 AN816-6D Nipple .............................................................................1 ..........1 ..........2 6.21
45 AN818-6D Nut – Tube ......................................................................1 ..........1 ..........2 1.8
46 AN819-6D Sleeve – Tube ..................................................................1 ..........1 ..........2 2
47 100HDX3/8 Imperial Valve .................................................................1 .......................1 NM!
48 086102-20 Tube Assembly – LH ......................................................1 .......................1 NM!
49 086102-20 Tube Assembly – RH ...................................................................1 ..........1 NM!
(Note: Tube Assemblies are complete with loom
and fittings.)
50 AN824-6D Tee ...................................................................................1 ..........1 ..........2 16.4
51 AN818-6D Nut – Tube ......................................................................1 ..........1 ..........2 1.8
52 AN819-6D Sleeve – Tube ..................................................................1 ..........1 ..........2 2
53 086102-2000 Tube Assembly – LH/RH ...............................................1 ..........1 ..........2 NM!
54 -286081 Guard – Gas Line – LH ..................................................1 .......................1 43.12
55 -286081-1 Guard – Gas Line – RH ...............................................................1 ..........1 43.12
56 086102-10 Loom Cover ....................................................................1 ..........1 ..........2 NM!
57 086102-24 Tube Assembly – LH/RH ...............................................1 ..........1 ..........2 NM!
58 086115-2 Felt Strip (¾” x 30”) .......................................................3 ..........3 ..........6 NM!
59 AN525-416-9 Screw ..............................................................................4 ..........4 ..........8 NM!
60 AN960-5 Washer ............................................................................4 ..........4 ..........8 NM!
61 MS21078-4 Nut Plate – AN366F428 ..................................................4 ..........4 ..........8 17.4
62 486099 Strap Assembly – Front – Metal Tank ............................2 ..........2 ..........4 NM!
63 486099-2 Front Strap Only .............................................................2 ..........2 ..........4 NM!
63A 086101 Strap Assembly – Front and Rear – Metal Wing ............2 ..........2 ..........4 NM!
64 486099-3 Felt Strip – Front .............................................................2 ..........2 ..........4 NM!
65 AN150-8S Turnbuckle ......................................................................2 ..........2 ..........4 NM!
66 .040 Brass Safety Wire ...................................................2 ..........2 ..........4 X
67 AN393-9 Clevis Pin ........................................................................4 ..........4 ..........8 1.03
68 NAS1149F0332P Washer – AN960-10L .....................................................4 ..........4 ..........8 0.04
69 AN380-2-2 Cotter Pin ........................................................................4 ..........4 ..........8 0.04
70 486100 Strap Assembly – Rear – Metal Tank .............................2 ..........2 ..........4 NM!
71 486100-2 Rear Strap Only ..............................................................2 ..........2 ..........4 NM!
72 486100-3 Felt Strap – Rear (1” x 11 ⁄16”) ........................................2 ..........2 ..........4 NM!
3
73 086101-5 Felt Pad (1” x 2”) ............................................................8 ..........8 .........16 NM!
74 09220 Metal Wing Tank Assembly – LH ..................................1 .......................1 NM!
75 09220-1 Metal Wing Tank Assembly – RH ...............................................1 ..........1 NM!
76 081115-2 Felt Strip (¾” x 30”) .......................................................3 ..........3 ..........6 NM!

89
