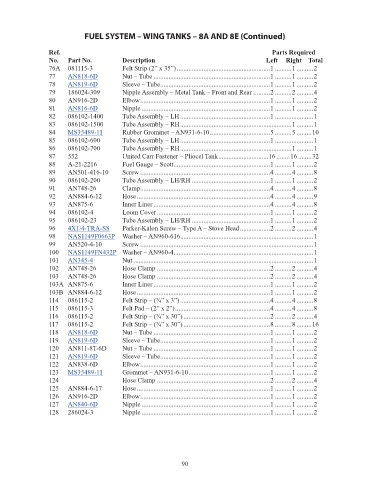

FUEL SYSTEM – WING TANKS – 8A AND 8E (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
76A 081115-3 Felt Strip (2” x 35”) ........................................................1 ..........1 ..........2 NM!
77 AN818-6D Nut – Tube ......................................................................1 ..........1 ..........2 1.8
78 AN819-6D Sleeve – Tube ..................................................................1 ..........1 ..........2 2
79 186024-309 Nipple Assembly – Metal Tank – Front and Rear ..........2 ..........2 ..........4 NM!
80 AN916-2D Elbow ..............................................................................1 ..........1 ..........2 NM!
81 AN816-6D Nipple .............................................................................1 ..........1 ..........2 6.21
82 086102-1400 Tube Assembly – LH ......................................................1 .......................1 NM!
83 086102-1500 Tube Assembly – RH ...................................................................1 ..........1 NM!
84 MS35489-11 Rubber Grommet – AN931-6-10 ....................................5 ..........5 .........10 0.6
85 086102-600 Tube Assembly – LH ......................................................1 .......................1 NM!
86 086102-700 Tube Assembly – RH ...................................................................1 ..........1 NM!
87 552 United Carr Fastener – Pliocel Tank ..............................16 ........16 ........32 NM!
88 A-21-2216 Fuel Gauge – Scott ..........................................................1 ..........1 ..........2 NM!
89 AN501-416-10 Screw ..............................................................................4 ..........4 ..........8 NM!
90 086102-200 Tube Assembly – LH/RH ...............................................1 ..........1 ..........2 NM!
91 AN748-26 Clamp ..............................................................................4 ..........4 ..........8 NM!
92 AN884-6-12 Hose ................................................................................4 ..........4 ..........9 NM!
93 AN875-6 Inner Liner ......................................................................4 ..........4 ..........8 NM!
94 086102-4 Loom Cover ....................................................................1 ..........1 ..........2 NM!
95 086102-23 Tube Assembly – LH/RH ...............................................1 ..........1 ..........2 NM!
96 4X1/4-TRA-SS Parker-Kalon Screw – Type A – Stove Head ..................2 ..........2 ..........4 0.1
98 NAS1149F0663P Washer – AN960-616 ................................................................................1 0.11
99 AN520-4-10 Screw ........................................................................................................1 NM!
100 NAS1149FN432P Washer – AN960-4 ....................................................................................1 0.04
101 AN345-4 Nut ............................................................................................................1 0.2
102 AN748-26 Hose Clamp ....................................................................2 ..........2 ..........4 NM!
103 AN748-26 Hose Clamp ....................................................................2 ..........2 ..........4 NM!
103A AN875-6 Inner Liner ......................................................................1 ..........1 ..........2 NM!
103B AN884-6-12 Hose ................................................................................1 ..........1 ..........2 NM!
114 086115-2 Felt Strip – (¾” x 3”) ......................................................4 ..........4 ..........8 NM!
115 086115-3 Felt Pad – (2” x 2”) .........................................................4 ..........4 ..........8 NM!
116 086115-2 Felt Strip – (¾” x 30”) ....................................................2 ..........2 ..........4 NM!
117 086115-2 Felt Strip – (¾” x 30”) ....................................................8 ..........8 .........16 NM!
118 AN818-6D Nut – Tube ......................................................................1 ..........1 ..........2 1.8
119 AN819-6D Sleeve – Tube ..................................................................1 ..........1 ..........2 2
120 AN811-8T-6D Nut – Tube ......................................................................1 ..........1 ..........2 NM!
121 AN819-6D Sleeve – Tube ..................................................................1 ..........1 ..........2 2
122 AN838-6D Elbow ..............................................................................1 ..........1 ..........2 NM!
123 MS35489-11 Grommet – AN931-6-10 .................................................1 ..........1 ..........2 0.6
124 Hose Clamp ....................................................................2 ..........2 ..........4 X
125 AN884-6-17 Hose ................................................................................1 ..........1 ..........2 NM!
126 AN916-2D Elbow ..............................................................................1 ..........1 ..........2 NM!
127 AN840-6D Nipple .............................................................................1 ..........1 ..........2 11.96
128 286024-3 Nipple .............................................................................1 ..........1 ..........2 NM!

90
