Page 96 - Luscombe Silvaire Model 8 Master Parts List

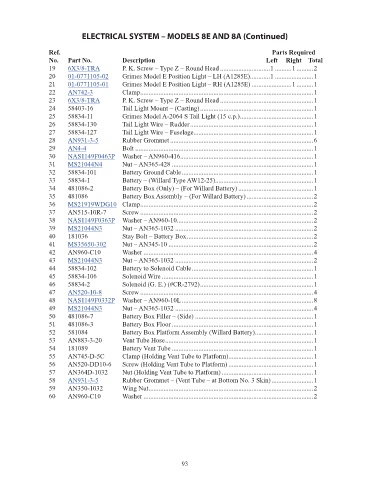

ELECTRICAL SYSTEM – MODELS 8E AND 8A (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
19 6X3/8-TRA P. K. Screw – Type Z – Round Head ..............................1 ..........1 ..........2 0.06
20 01-0771105-02 Grimes Model E Position Light – LH (A1285E) ............1 .......................1 311.22
21 01-0771105-01 Grimes Model E Position Light – RH (A1285E) ........................1 ..........1 311.22
22 AN742-3 Clamp ........................................................................................................1 0.72
23 6X3/8-TRA P. K. Screw – Type Z – Round Head ........................................................1 0.06
24 58403-16 Tail Light Mount – (Casting) ....................................................................1 NM!
25 58834-11 Grimes Model A-2064 S Tail Light (15 c.p.) ............................................1 NM!
26 58834-130 Tail Light Wire – Rudder ..........................................................................1 NM!
27 58834-127 Tail Light Wire – Fuselage ........................................................................1 NM!
28 AN931-3-5 Rubber Grommet ......................................................................................6 1.46
29 AN4-4 Bolt ...........................................................................................................1 0.92
30 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
31 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
32 58834-101 Battery Ground Cable ...............................................................................1 NM!
33 58834-1 Battery – (Willard Type AW12-25) ...........................................................1 NM!
34 481086-2 Battery Box (Only) – (For Willard Battery) .............................................1 NM!
35 481086 Battery Box Assembly – (For Willard Battery) ........................................2 NM!
36 MS21919WDG10 Clamp ........................................................................................................2 1
37 AN515-10R-7 Screw ........................................................................................................2 NM!
38 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
39 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
40 181036 Stay Bolt – Battery Box ............................................................................2 NM!
41 MS35650-302 Nut – AN345-10 .......................................................................................2 0.14
42 AN960-C10 Washer ......................................................................................................4 NM!
43 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
44 58834-102 Battery to Solenoid Cable .........................................................................1 NM!
45 58834-106 Solenoid Wire ...........................................................................................1 NM!
46 58834-2 Solenoid (G. E.) (#CR-2792) ....................................................................1 NM!
47 AN520-10-8 Screw ........................................................................................................4 0.07
48 NAS1149F0332P Washer – AN960-10L ...............................................................................8 0.04
49 MS21044N3 Nut – AN365-1032 ...................................................................................4 0.24
50 481086-7 Battery Box Filler – (Side) .......................................................................1 NM!
51 481086-3 Battery Box Floor .....................................................................................1 NM!
52 581084 Battery Box Platform Assembly (Willard Battery) ...................................1 NM!
53 AN883-3-20 Vent Tube Hose .........................................................................................1 NM!
54 181089 Battery Vent Tube .....................................................................................1 NM!
55 AN745-D-5C Clamp (Holding Vent Tube to Platform) ...................................................1 NM!
56 AN520-DD10-6 Screw (Holding Vent Tube to Platform) ...................................................1 NM!
57 AN364D-1032 Nut (Holding Vent Tube to Platform) .......................................................1 NM!
58 AN931-3-5 Rubber Grommet – (Vent Tube – at Bottom No. 3 Skin) .........................1 1.46
59 AN350-1032 Wing Nut ...................................................................................................2 NM!
60 AN960-C10 Washer ......................................................................................................2 NM!

93
