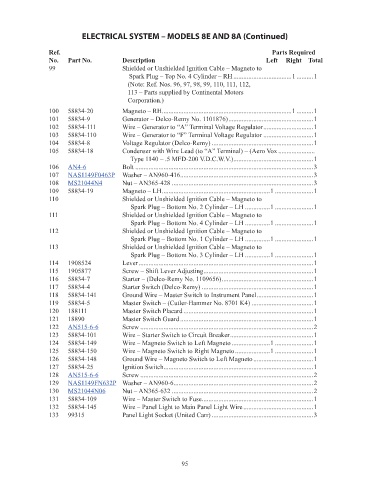

ELECTRICAL SYSTEM – MODELS 8E AND 8A (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
99 Shielded or Unshielded Ignition Cable – Magneto to
Spark Plug – Top No. 4 Cylinder – RH ...................................1 ..........1 X
(Note: Ref. Nos. 96, 97, 98, 99, 110, 111, 112,
113 – Parts supplied by Continental Motors
Corporation.)
100 58834-20 Magneto – RH ..............................................................................1 ..........1 NM!
101 58834-9 Generator – Delco-Remy No. 1101876) ...................................................1 NM!
102 58834-111 Wire – Generator to “A” Terminal Voltage Regulator ..............................1 NM!
103 58834-110 Wire – Generator to “F” Terminal Voltage Regulator ..............................1 NM!
104 58834-8 Voltage Regulator (Delco-Remy) .............................................................1 NM!
105 58834-18 Condenser with Wire Lead (to “A” Terminal) – (Aero Vox ...................... NM!
Type 1140 – .5 MFD-200 V.D.C.W.V.) ................................................1 X
106 AN4-6 Bolt ...........................................................................................................3 0.52
107 NAS1149F0463P Washer – AN960-416 ................................................................................3 0.06
108 MS21044N4 Nut – AN365-428 .....................................................................................3 0.3
109 58834-19 Magneto – LH .................................................................1 .......................1 NM!
110 Shielded or Unshielded Ignition Cable – Magneto to
Spark Plug – Bottom No. 2 Cylinder – LH ...............1 .......................1 X
111 Shielded or Unshielded Ignition Cable – Magneto to
Spark Plug – Bottom No. 4 Cylinder – LH ...............1 .......................1 X
112 Shielded or Unshielded Ignition Cable – Magneto to
Spark Plug – Bottom No. 1 Cylinder – LH ...............1 .......................1 X
113 Shielded or Unshielded Ignition Cable – Magneto to
Spark Plug – Bottom No. 3 Cylinder – LH ...............1 .......................1 X
114 1908524 Lever .........................................................................................................1 NM!
115 1905877 Screw – Shift Lever Adjusting ..................................................................1 NM!
116 58834-7 Starter – (Delco-Remy No. 1109656) .......................................................1 NM!
117 58834-4 Starter Switch (Delco-Remy) ...................................................................1 NM!
118 58834-141 Ground Wire – Master Switch to Instrument Panel ..................................1 NM!
119 58834-5 Master Switch – (Cutler-Hammer No. 8701 K4) .....................................1 NM!
120 188111 Master Switch Placard ..............................................................................1 NM!
121 18890 Master Switch Guard ................................................................................1 NM!
122 AN515-6-6 Screw ........................................................................................................2 0.11
123 58834-101 Wire – Starter Switch to Circuit Breaker ..................................................1 NM!
124 58834-149 Wire – Magneto Switch to Left Magneto .......................1 .......................1 NM!
125 58834-150 Wire – Magneto Switch to Right Magneto .....................1 .......................1 NM!
126 58834-148 Ground Wire – Magneto Switch to Left Magneto ....................................1 NM!
127 58834-25 Ignition Switch ..........................................................................................1 NM!
128 AN515-6-6 Screw ........................................................................................................2 0.11
129 NAS1149FN632P Washer – AN960-6 ....................................................................................2 0.06
130 MS21044N06 Nut – AN365-632 .....................................................................................2 0.32
131 58834-109 Wire – Master Switch to Fuse ...................................................................1 NM!
132 58834-145 Wire – Panel Light to Main Panel Light Wire ..........................................1 NM!
133 99315 Panel Light Socket (United Carr) .............................................................3 NM!
95
