Page 101 - Luscombe Silvaire Model 8 Master Parts List

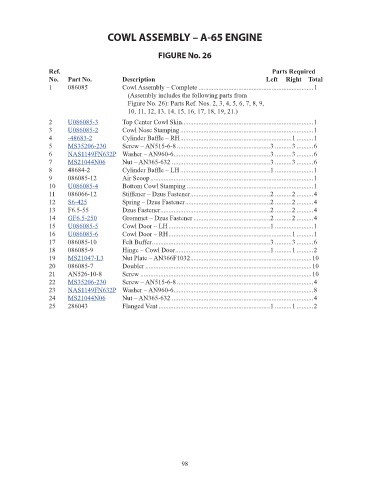

COWL ASSEMBLY – A-65 ENGINE

FIGURE No. 26

Ref. Parts Required
No. Part No. Description Left Right Total
1 086085 Cowl Assembly – Complete .....................................................................1 NM!
(Assembly includes the following parts from
Figure No. 26): Parts Ref. Nos. 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21.)
2 U086085-3 Top Center Cowl Skin...............................................................................1 488.82
3 U086085-2 Cowl Nose Stamping ................................................................................1 1703.98
4 -48683-2 Cylinder Baffle – RH ...................................................................1 ..........1 98.7
5 MS35206-230 Screw – AN515-6-8 ........................................................3 ..........3 ..........6 0.08
6 NAS1149FN632P Washer – AN960-6 ..........................................................3 ..........3 ..........6 0.06
7 MS21044N06 Nut – AN365-632 ...........................................................3 ..........3 ..........6 0.32
8 48684-2 Cylinder Baffle – LH ......................................................1 .......................1 NM!
9 086085-12 Air Scoop ..................................................................................................1 NM!
10 U086085-4 Bottom Cowl Stamping ............................................................................1 966.11
11 086066-12 Stiffener – Dzus Fastener ................................................2 ..........2 ..........4 NM!
12 S6-425 Spring – Dzus Fastener ...................................................2 ..........2 ..........4 7.67
13 F6.5-55 Dzus Fastener ..................................................................2 ..........2 ..........4 NM!
14 GF6.5-250 Grommet – Dzus Fastener ..............................................2 ..........2 ..........4 5
15 U086085-5 Cowl Door – LH .............................................................1 .......................1 212.85
16 U086085-6 Cowl Door – RH ..........................................................................1 ..........1 212.85
17 086085-10 Felt Buffer .......................................................................3 ..........3 ..........6 NM!
18 086085-9 Hinge – Cowl Door .........................................................1 ..........1 ..........2 NM!
19 MS21047-L3 Nut Plate – AN366F1032 .........................................................................10 0.36
20 086085-7 Doubler ....................................................................................................10 NM!
21 AN526-10-8 Screw .......................................................................................................10 NM!
22 MS35206-230 Screw – AN515-6-8 ..................................................................................4 0.08
23 NAS1149FN632P Washer – AN960-6 ....................................................................................8 0.06
24 MS21044N06 Nut – AN365-632 .....................................................................................4 0.32
25 286043 Flanged Vent ...................................................................1 ..........1 ..........2 NM!

98
