Page 99 - Luscombe Silvaire Model 8 Master Parts List

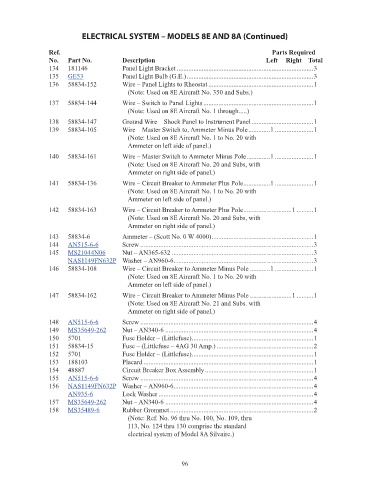

ELECTRICAL SYSTEM – MODELS 8E AND 8A (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
134 181146 Panel Light Bracket ..................................................................................3 NM!
135 GE53 Panel Light Bulb (G.E.) ............................................................................3 2.06
136 58834-152 Wire – Panel Lights to Rheostat ...............................................................1 NM!
(Note: Used on 8E Aircraft No. 350 and Subs.)
137 58834-144 Wire – Switch to Panel Lights ..................................................................1 NM!
(Note: Used on 8E Aircraft No. 1 through.....)
138 58834-147 Ground Wire – Shock Panel to Instrument Panel .....................................1 NM!
139 58834-105 Wire – Master Switch to, Ammeter Minus Pole .............1 .......................1 NM!
(Note: Used on 8E Aircraft No. 1 to No. 20 with
Ammeter on left side of panel.)
140 58834-161 Wire – Master Switch to Ammeter Minus Pole ..............1 .......................1 NM!
(Note: Used on 8E Aircraft No. 20 and Subs, with
Ammeter on right side of panel.)
141 58834-136 Wire – Circuit Breaker to Ammeter Plus Pole ................1 .......................1 NM!
(Note: Used on 8E Aircraft No. 1 to No. 20 with
Ammeter on left side of panel.)
142 58834-163 Wire – Circuit Breaker to Ammeter Plus Pole .............................1 ..........1 NM!
(Note: Used on 8E Aircraft No. 20 and Subs, with
Ammeter on right side of panel.)
143 58834-6 Ammeter – (Scott No. 0 W 4000) .............................................................1 NM!
144 AN515-6-6 Screw ........................................................................................................3 0.11
145 MS21044N06 Nut – AN365-632 .....................................................................................3 0.32
NAS1149FN632P Washer – AN960-6 ....................................................................................3 0.06
146 58834-108 Wire – Circuit Breaker to Ammeter Minus Pole ............1 .......................1 NM!
(Note: Used on 8E Aircraft No. 1 to No. 20 with
Ammeter on left side of panel.)
147 58834-162 Wire – Circuit Breaker to Ammeter Minus Pole .........................1 ..........1 NM!
(Note: Used on 8E Aircraft No. 21 and Subs. with
Ammeter on right side of panel.)

148 AN515-6-6 Screw ........................................................................................................4 0.11
149 MS35649-262 Nut – AN340-6 .........................................................................................4 0.14
150 5701 Fuse Holder – (Littlefuse) .........................................................................1 NM!
151 58834-15 Fuse – (Littlefuse – 4AG 30 Amp.) ..........................................................2 NM!
152 5701 Fuse Holder – (Littlefuse) .........................................................................1 NM!
153 188103 Placard ......................................................................................................1 NM!
154 48887 Circuit Breaker Box Assembly .................................................................1 NM!
155 AN515-6-6 Screw ........................................................................................................4 0.11
156 NAS1149FN632P Washer – AN960-6 ....................................................................................4 0.06
AN935-6 Lock Washer .............................................................................................4 0.02
157 MS35649-262 Nut – AN340-6 .........................................................................................4 0.14
158 MS35489-6 Rubber Grommet ......................................................................................2 0.4
(Note: Ref. No. 96 thru No. 100, No. 109, thru
113, No. 124 thru 130 comprise the standard
electrical system of Model 8A Silvaire.)

96
